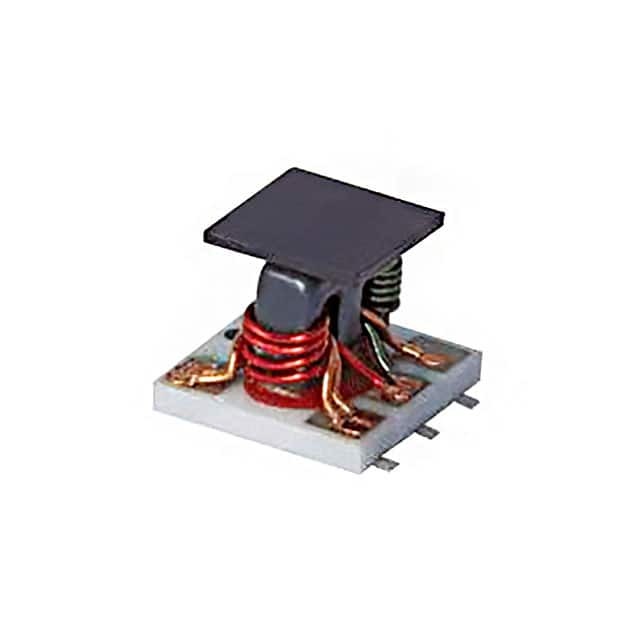

DBTC-20-4LX+
Same model may have multiple batches, images only for reference.

DBTC-20-4LX+

Part No DBTC-20-4LX+
Manufacturer Mini-Circuits
Catalog RF Directional Coupler
Description RF DIR COUPLER 20MHZ-1GHZ 5SMD
Datasheet
DBTC-20-4LX+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Coupler Type Standard
Frequency 20MHz ~ 1GHz
Coupling Factor 20.4 ± 0.5dB
Applications Cellular
Power - Max 1W
Return Loss 31.8dB
Package / Case 5-SMD Module
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 916803-DBTC-20-4LX+
Ultra Librarian 3D Model Ultra Librarian DBTC-20-4LX+ CAD Model

Description

The 916803-DBTC-20-4LX+ is an RF directional coupler designed for cellular applications.

  • Frequency Range: 20MHz to 1GHz
  • Coupling Factor: 20.4 ± 0.5dB
  • Return Loss: 31.8dB
  • Package: 5-SMD Module
  • Package Quantity: 2,000 pcs
  • Product Status: Active
  • Manufacturer: Mini-Circuits
