Same model may have multiple batches, images only for reference.

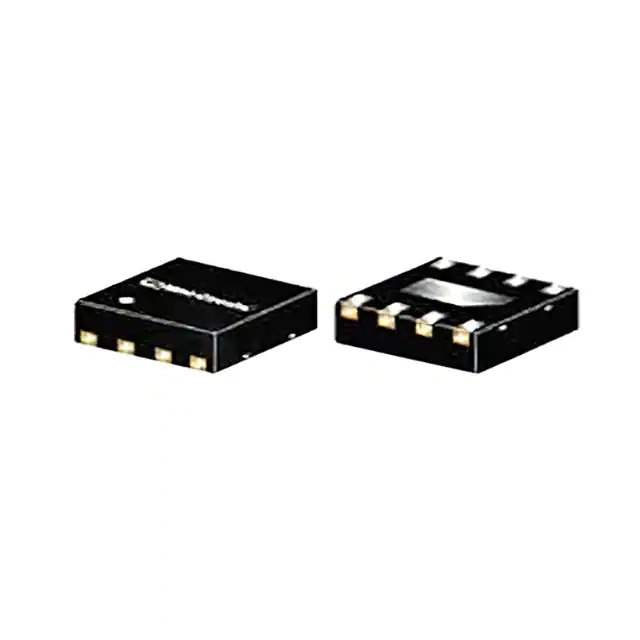

EQY-5-63+ Real Image
Same model may have multiple batches, images only for reference.

EQY-5-63+

Part No EQY-5-63+
Manufacturer Mini-Circuits
Catalog RF Filters
Description RF FILTER 5 DB 8TFDFN
Datasheet
EQY-5-63+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Package / Case 8-TFDFN Exposed Pad
Size / Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height (Max) 0.041" (1.05mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 847388-EQY-5-63+
Ultra Librarian 3D Model Ultra Librarian EQY-5-63+ CAD Model

Description

The 847388-EQY-5-63+ is a surface mount RF filter from Mini-Circuits.

  • Category: Filters - RF Filters
  • Package / Case: 8-TFDFN Exposed Pad
  • Size / Dimension: 0.079" L x 0.079" W (2.00mm x 2.00mm)
  • Height (Max): 0.041" (1.05mm)
  • Standard Package: 500 pcs
  • Mounting Type: Surface Mount
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8542.39.0001
