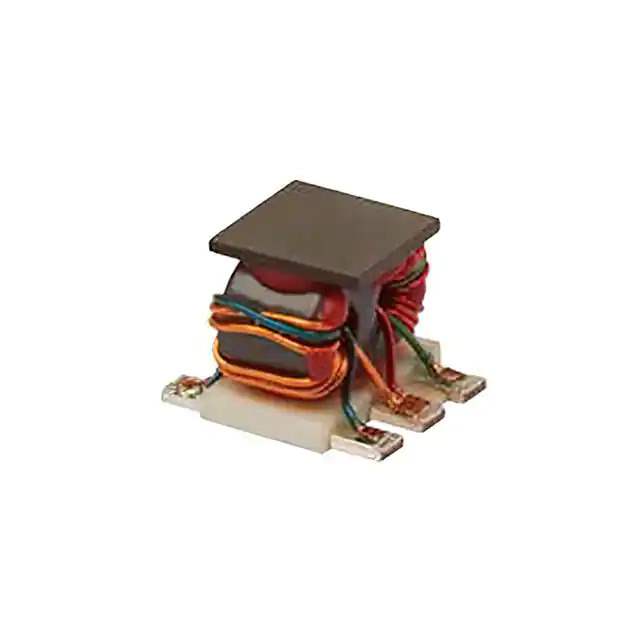

TC1-42X+ Real Image
Same model may have multiple batches, images only for reference.

TC1-42X+

Part No TC1-42X+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:1 CORE & WIRE TRANSFORMER, 0.2
Datasheet
TC1-42X+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 250kHz ~ 400MHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 3°
Insertion Loss (Max) 3dB
Return Loss (Min) 8.85dB
Package / Case 5-SMD Module
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 936141-TC1-42X+
Ultra Librarian 3D Model Ultra Librarian TC1-42X+ CAD Model

Description

The Mini-Circuits 936141-TC1-42X+ is an RF balun designed for applications in the RF and Wireless category from Mini-Circuits.

  • Frequency Range: 250kHz to 400MHz
  • Impedance: 50 / 50 Ohm for unbalanced/balanced signals
  • Phase Difference: 3°
  • Insertion Loss: 3dB
  • Return Loss: 8.85dB
  • Package: 5-SMD Module
  • Mounting: surface mount installation
  • Status: active
