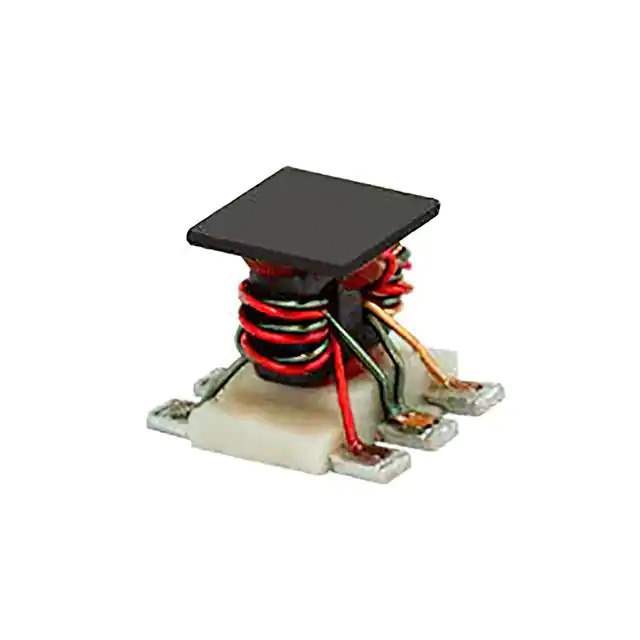

TCD-9-1WX+ Real Image
Same model may have multiple batches, images only for reference.

TCD-9-1WX+

Part No TCD-9-1WX+
Manufacturer Mini-Circuits
Catalog RF Directional Coupler
Description RF DIR COUPLER 5MHZ-2GHZ 6SMD
Datasheet
TCD-9-1WX+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Coupler Type Standard
Frequency 5MHz ~ 2GHz
Coupling Factor 8.9 ± 0.5dB
Applications Cellular
Power - Max 1W
Return Loss 30.26dB
Package / Case 6-SMD, Flat Leads
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 720720-TCD-9-1WX+
Ultra Librarian 3D Model Ultra Librarian TCD-9-1WX+ CAD Model

Description

The 720720-TCD-9-1WX+ is an RF directional coupler from Mini-Circuits.

  • Maximum Power: 1W
  • Frequency Range: 5MHz to 2GHz
  • Coupling Factor: 8.9 ± 0.5dB
  • Return Loss: 30.26dB
  • Package Type: 6-SMD with flat leads
  • Packaging: Tape and Reel
  • Status: Active
