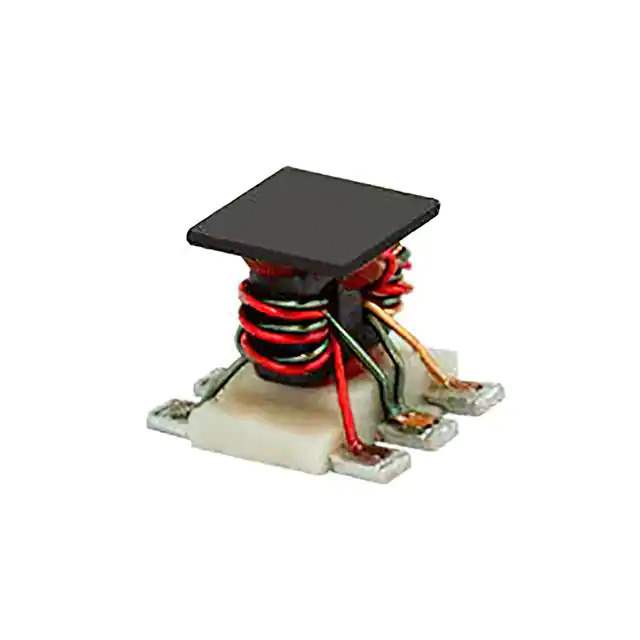

TCM3-1TX+ Real Image
Same model may have multiple batches, images only for reference.

TCM3-1TX+

Part No TCM3-1TX+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:3 CORE & WIRE TRANSFORMER, 2 -
Datasheet
TCM3-1TX+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 2MHz ~ 500MHz
Phase Difference 2°
Insertion Loss (Max) 2.0dB
Return Loss (Min) 15.11dB
Package / Case 6-SMD, Flat Leads
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 936253-TCM3-1TX+
Ultra Librarian 3D Model Ultra Librarian TCM3-1TX+ CAD Model

Description

The 936253-TCM3-1TX+ is an RF and Wireless Balun from Mini-Circuits.

  • Frequency Range: 2MHz to 500MHz
  • Phase Difference: 2 degrees
  • Maximum Insertion Loss: 2.0dB
  • Minimum Return Loss: 15.11dB
  • Package Type: 6-SMD, Flat Leads
  • Mounting: surface mount installation
  • Package: 2,000 pcs
  • Product Status: active
