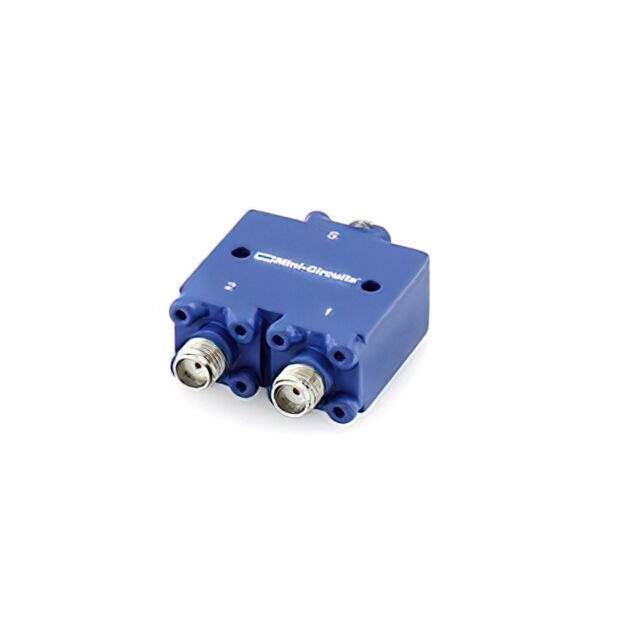

ZC2PD-18263-S+ Mini-Circuits
Same model may have multiple batches, images only for reference.

ZC2PD-18263-S+

Part No ZC2PD-18263-S+
Manufacturer Mini-Circuits
Catalog RF and Wireless >RF Power Dividers/Splitters
Description 2 WAYS STRIPLINE DC PPS
Datasheet
ZC2PD-18263-S+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

ZC2PD-18263-S+ is a super wideband 2-way 0° splitter/combiner providing coverage from 18 to 26.5 GHz, supporting a wide range of applications including K-Band, instrumentation and many more. This model provides 20W power handling as a splitter and very low insertion loss across the entire operating frequency range, minimizing power dissipation and delivering excellent signal power transmission from input to output. The ZC2PD-18263-S+ comes housed in a case measuring 0.85 x 1.06 x 0.5” with super SMA connectors.
