Same model may have multiple batches, images only for reference.

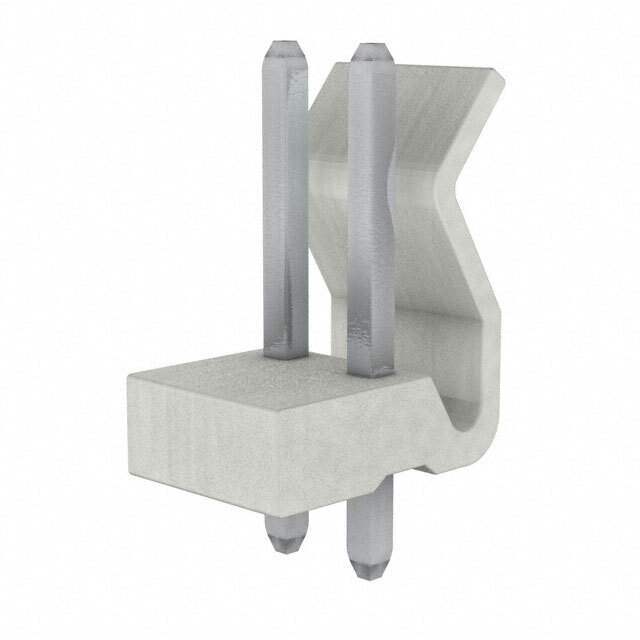

0009652028 Molex
Same model may have multiple batches, images only for reference.

0009652028

Part No 0009652028
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 3.96MM
Datasheet
0009652028 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Bulk
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Ultra Librarian 3D Model Ultra Librarian 0009652028 CAD Model

Description

SPOX and KK 396 Wireto-Board Header, Vertical, with Friction Lock, 2 Circuits
