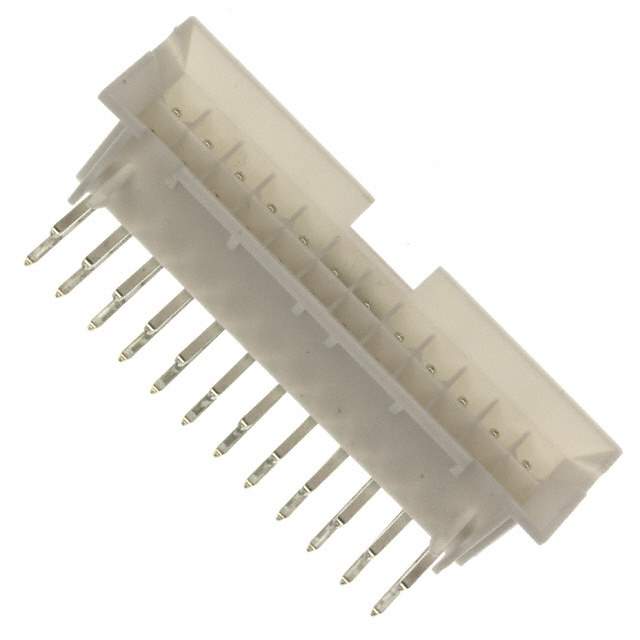

0015246243 Real Image1 0015246243 Real Image2
Same model may have multiple batches, images only for reference.
0015246243 Real Image1 0015246243 Real Image2
0015246243 Real Image1 0015246243 Real Image2
Same model may have multiple batches, images only for reference.

0015246243

Part No 0015246243
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 24POS 4.2MM / Connector Header Through Hole, Right Angle 24 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Mini-Fit BMI 42404
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating -
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length -
Insulation Height 0.591" (15.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Blind Mating, Board Lock
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Medical, Telecommunications
Base Product Number 001524
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 200 pcs
Win Source Part Number 1380357-0015246243
Ultra Librarian 3D Model Ultra Librarian 0015246243 CAD Model

Description

The Molex, LLC 1197494 is a rectangular connector header with male pins. It belongs to the Mini-Fit BMI 42404 series and features 24 positions.

  • Series: Mini-Fit BMI 42404
  • Positions: 24
  • Connector Type: Header, Male Pins
  • Mounting Type: Through Hole, Right Angle
  • Pitch: 0.165" (4.20mm)
  • Applications: Board-to-Board or Cable, General Purpose, Industrial, Medical, Telecommunications
  • Features: Latch Holder, Shrouded - 4 Walls
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA66)
  • Flammability Rating: UL94 V-0
  • Packaging: Tray
  • Status: Active
