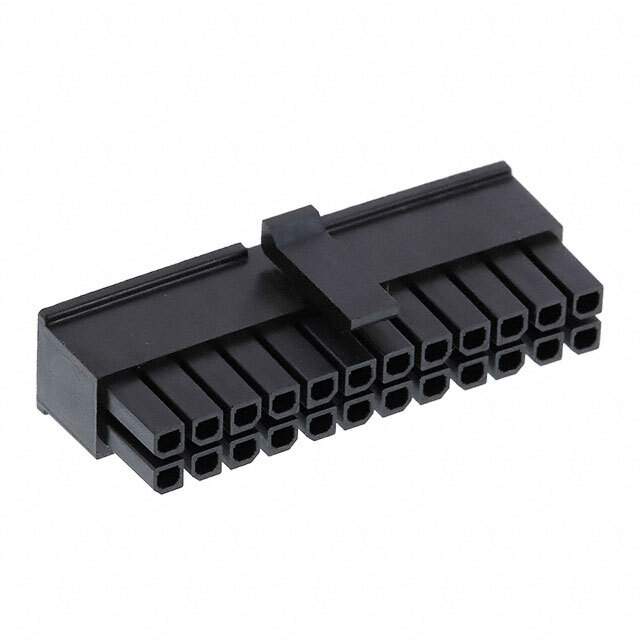

Same model may have multiple batches, images only for reference.

0430252400

Name: 0430252400
Brand: Molex, LLC
SKU: 1380817
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0430252400
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 24POS 3.00MM / 24 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Mfr	Molex, LLC
Series	Micro-Fit 3.0 43025
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	24
Pitch	0.118" (3.00mm)
Number of Rows	2
Row Spacing	0.118" (3.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Black
Features	-
Insulation Material	Polyester
Temperature Range - Operating	-40°C ~ 105°C
Note	Contacts Not Included
Base Product Number	043025
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8538.90.6000
Standard Package	2,000 pcs
Win Source Part Number	1380817-0430252400
Ultra Librarian 3D Model	Ultra Librarian 0430252400 CAD Model

Alternative Products

Description

The Micro-Fit 3.0 43025 series is a rectangular connector housing designed for interconnecting electronic components.

Connector Type: Receptacle
Series: Micro-Fit 3.0 43025
Pitch: 0.118" (3.00mm)
Number of Positions: 24
Color: Black
Fastening Type: Latch Lock
Insulation Material: Polyester
Operating Temperature: -40°C ~ 105°C
Application: Automotive, Industrial, Telecommunications
Packaging: Bulk
Contact Termination: Crimp
Contacts Included: No
Manufacturer: Molex, LLC
