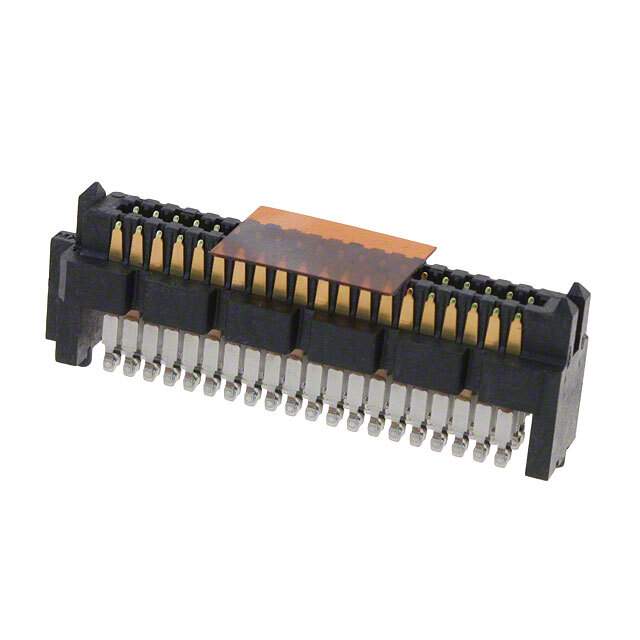

046556-2745 Real Image
Same model may have multiple batches, images only for reference.

046556-2745

Part No 046556-2745
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description CONN MALE 80POS 4ROWS GOLD SMD
Datasheet
046556-2745 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Connector Type High Density Array, Male
Number of Positions 80
Pitch 0.050" (1.27mm)
Number of Rows 4
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Mated Stacking Heights 12mm, 13mm, 13.5mm, 14.5mm, 15mm
Height Above Board 0.421" (10.70mm)
Win Source Part Number 197112-046556-2745
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 046556-2745 CAD Model

Description

046556-2745

The 046556-2745 electronic component is recognized for its cutting-edge design and reliable performance, making it a preferred choice in numerous electronic designs.
