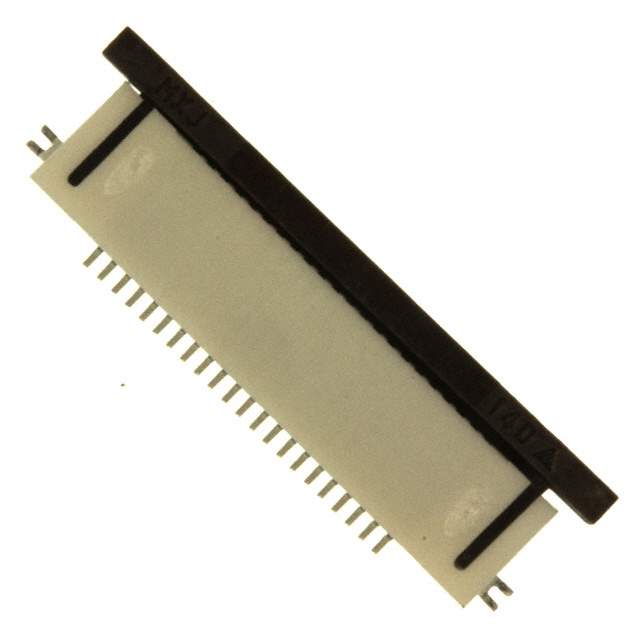

0524372272 Real Image
Same model may have multiple batches, images only for reference.

0524372272

Part No 0524372272
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 22POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Position Connector
Manufacturer Molex, LLC
Series Easy-On 52437
Package Reel - TR
Part Status Obsolete
Family Name 052437
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 00524372272, 052437-2272, 52437-2272-C, 0052437-2272-C, WM2169CT-ND, 900-0524372272CT, WM2169TR-ND, WM2169CT, 52437-2272-ND, WM2169TR, 52437-2272, WM2169DKR, 900-0524372272DKR, 524372272, 524372272-C, 900-0524372272TR, 00524372272-C, WM2169DKR-ND
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 849817-0524372272
Ultra Librarian 3D Model Ultra Librarian 0524372272 CAD Model

Description

The 849817-0524372272 is an Easy-On 52437 series connector from Molex, LLC that is designed with a position connector feature.

  • Series: Easy-On 52437
  • Package: Reel - TR
  • Win Source Part Number: 849817-0524372272
  • Manufacturer: Molex, LLC
  • Status: Obsolete
  • Supply and Demand: Limited
  • Quantity per Package: 1000
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS: 8536.69.4051
