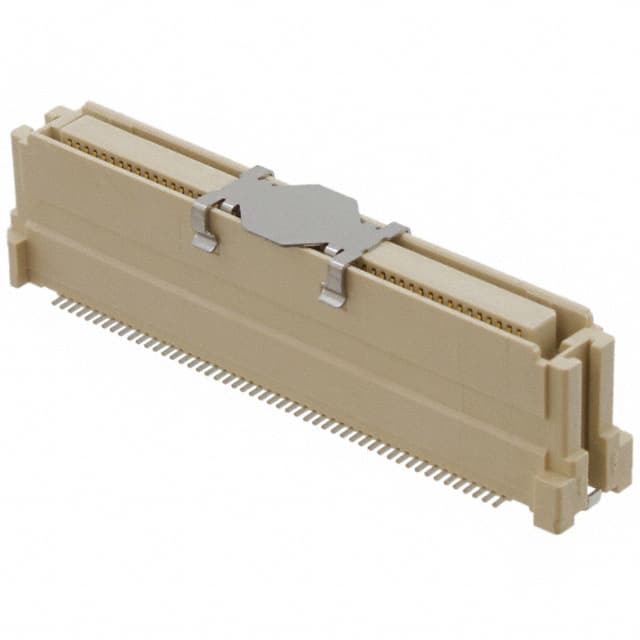

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series SlimStack 52901
Package Tape & Reel
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 100
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 11mm, 12mm, 13mm, 14mm, 15mm, 16mm
Height Above Board 0.394" (10.00mm)
Base Product Number 052901
Standard Package 440 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848016-0529011074
Ultra Librarian 3D Model Ultra Librarian 0529011074 CAD Model

Description

The SlimStack 52901 Rectangular Connector Array is a compact and versatile connector for your board-to-board connections.

  • Positions: 100
  • Pitch: 0.025" (0.64mm)
  • Board Guide: Yes
  • Solder Retention: Yes
  • Connector Type: Receptacle
  • Contact Type: Center Strip
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Package: 440 pcs
  • Mounting Type: Surface Mount
  • Height Above Board: 0.394" (10.00mm)
