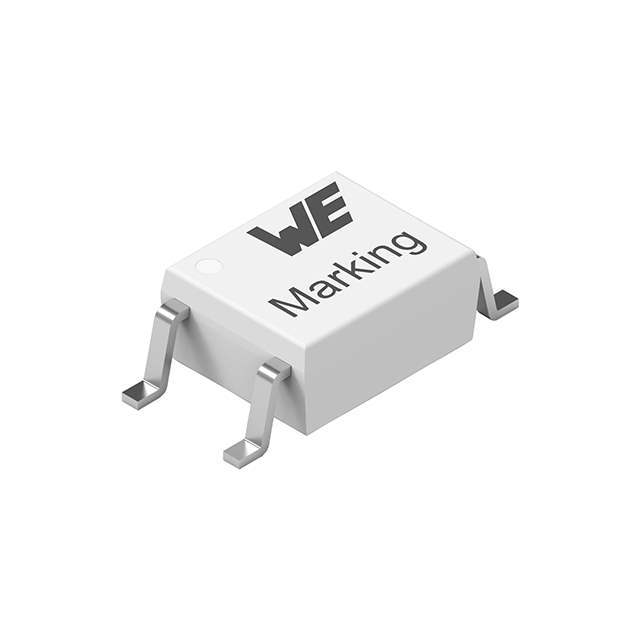

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1309699-140356145100
Manufacturer Würth Elektronik
Category Isolators > Optoisolators > Transistor, Photovoltaic Output Optoisolators
Part Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 80% @ 5mA
Current Transfer Ratio (Max) 160% @ 5mA
Rise / Fall Time (Typ) 3µs, 4µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Ultra Librarian 3D Model Ultra Librarian 140356145100 CAD Model

Description

Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
