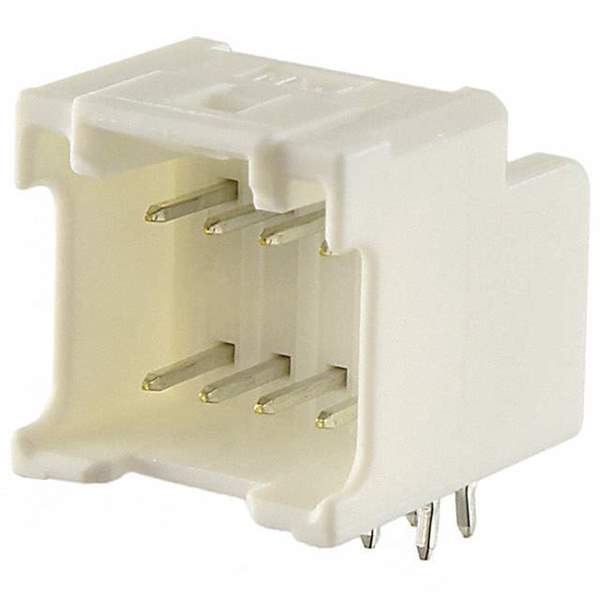

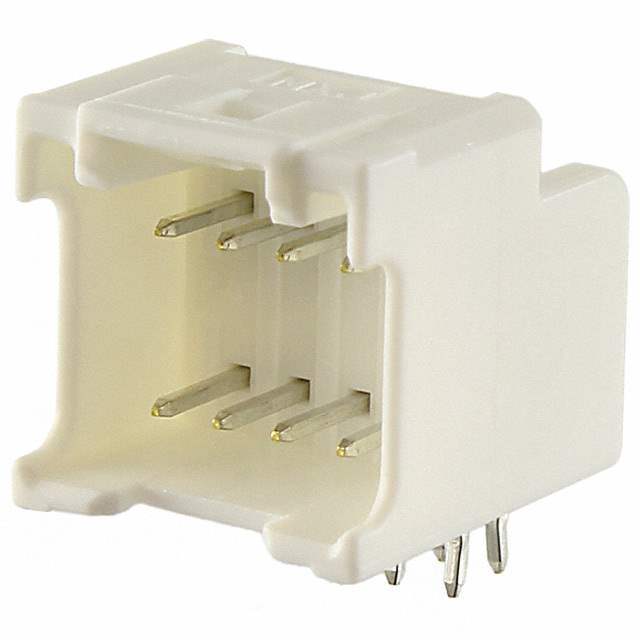

0559590830 Molex
Same model may have multiple batches, images only for reference.

0559590830

Part No 0559590830
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203861-0559590830
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors- Headers, Male Pins
Series MicroClasp 55959
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian 0559590830 CAD Model

Description

Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
