Same model may have multiple batches, images only for reference.

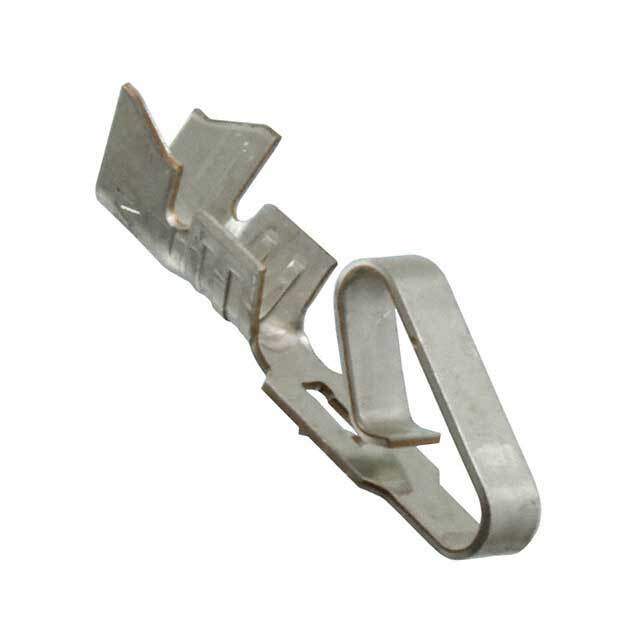

08-52-0072 Real Image
Same model may have multiple batches, images only for reference.

08-52-0072

Part No 08-52-0072
Manufacturer Molex, LLC
Catalog Terminals
Description Headers & Wire Housings KK 156 TERMINAL CRIMP 18-24 AWG TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, PCB, Signal, Socket
Contact Gender Female
Contact Material Bronze, Tin
Contact Plating Tin
Contact Resistance 6 mΩ
Country of Origin US
Current Rating 7 A
Depth 3.3 mm
Gender Female
Height 4.79 mm
Lead Free Yes
Length 13.69 mm
Max Current Rating 7 A
Maximum Operating Temperature 75 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature 0 °C
Mount Cable
Number of Contacts 1
Orientation Straight
Packaging Bulk
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 250 V
Wire/Cable Gauge 24 AWG
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 24 AWG
Win Source Part Number 1016324-08-52-0072
Categories Terminals
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 08-52-0072 CAD Model

Description

The Molex, LLC part number 1016324-08-52-0072 is a connector, PCB, signal socket with a crimp termination.

  • Connector Type: PCB Signal Socket
  • Termination: Crimp
  • Contact Material: Bronze, Tin
  • Voltage Rating: 250V
  • Current Rating: 7A
  • Number of Contacts: Single
  • Gender: Female
  • Orientation: Straight
  • Shielding: Unshielded
  • Length: 13.69mm
  • Height: 4.79mm
  • Contact Resistance: 6mΩ
  • Lead-Free: Yes
  • Wire/Cable Gauge: 24 AWG
  • Maximum Current Rating: 7A
  • RoHS Compliant: Yes
  • ECCN: EAR99
