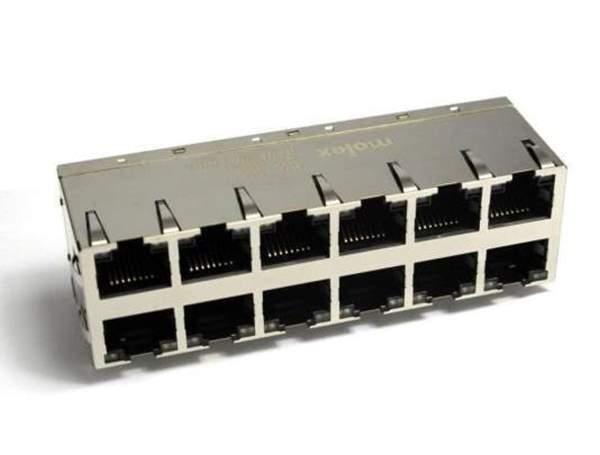

0857271008 Molex
Same model may have multiple batches, images only for reference.

0857271008

Part No 0857271008
Manufacturer Molex, LLC
Catalog Modular Connectors
Description CONN JACK 8PORT 1000 BASE-T PCB
Datasheet
0857271008 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324563-0857271008
Category Connectors, Interconnects> Modular Connectors >Modular Connector Jacks With Magnetics
Manufacturer Molex
Packaging Tray
Part Status Active
Connector Type RJ45
Number of Ports 8
Number of Rows 2
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Ultra Librarian 3D Model Ultra Librarian 0857271008 CAD Model

Description

The Gigabit Magnetic Jack is designed for easy implementation by meeting standard footprint and panel cut-outs for industry wide adoption in accordance with PoETeC ICM ).
