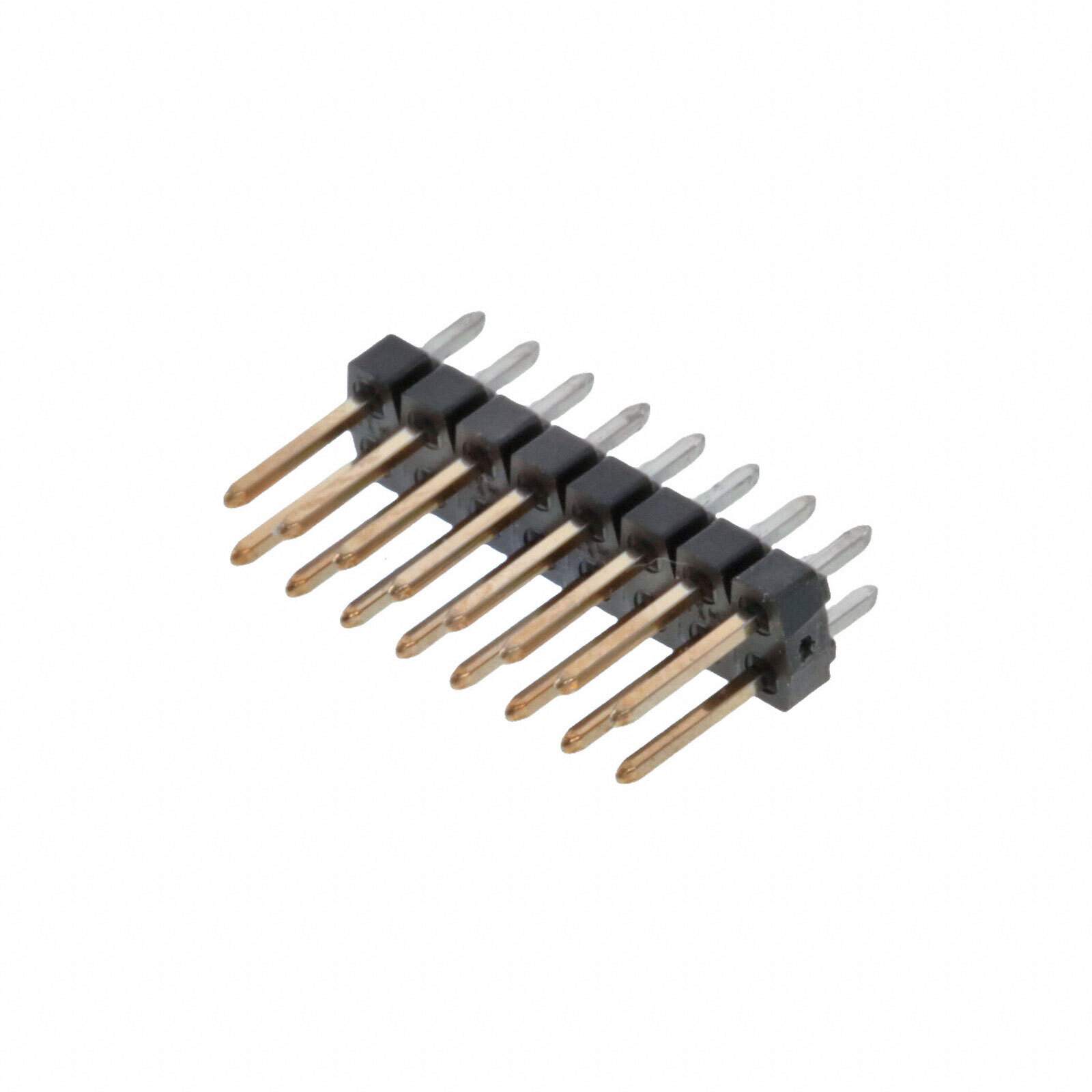

Part No 0901310768
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series C-Grid III 90131
Package Bulk
Product Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.266" (6.75mm)
Contact Length - Post 0.114" (2.90mm)
Overall Contact Length 0.478" (12.15mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 118.1µin (3.00µm)
Applications Automotive, General Purpose
Base Product Number 090131
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 908661-0901310768
Ultra Librarian 3D Model Ultra Librarian 0901310768 CAD Model

Description

The C-Grid III 90131 series is a header connector with male pins designed for use in rectangular connectors.

  • Series: C-Grid III 90131
  • Design: Breakaway
  • Termination: Solder
  • Positions: 16
  • Loaded: All male pins
  • Rows: 2
  • Pitch: 0.100" (2.54mm)
  • Contact Material: Brass
  • Mating Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Post Contact Finish: Tin with a thickness of 118.1µin (3.00µm)
  • Insulation Material: Polyester, glass-filled
  • Insulation Color: Black
  • Mounting: Through-hole
  • Shrouded: Unshrouded
  • Contact Length (Mating): 0.266" (6.75mm)
  • Contact Length (Overall): 0.478" (12.15mm)
  • Applications: Automotive and general-purpose
  • Voltage Rating: -
  • Material Flammability Rating: UL94 V-0
  • Packaging: Bulk
  • Standard Package: 1 piece
