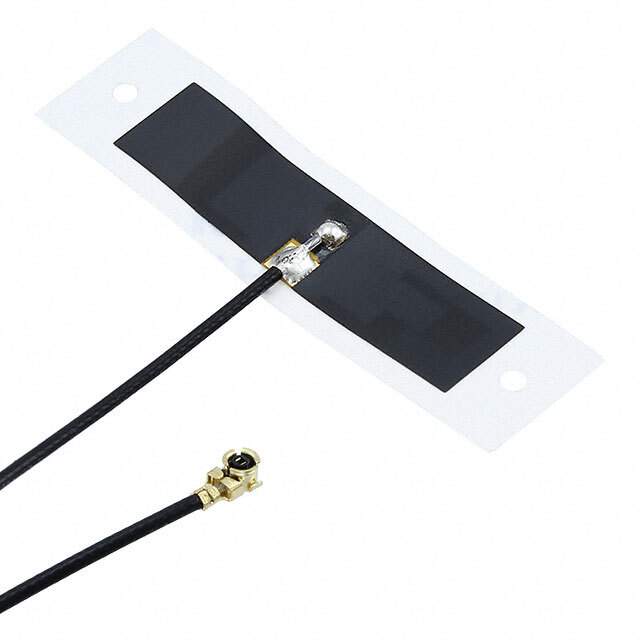

1461530100 Real Image
Same model may have multiple batches, images only for reference.

1461530100

Part No 1461530100
Manufacturer Molex, LLC
Catalog RF Antennas
Description RF ANT 2.4/5GHZ FLAT PATCH 100MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Molex, LLC
Series 146153
Package Bulk
Product Status Active
RF Family/Standard 802.15.4, WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5GHz
Frequency Range 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz
Antenna Type Flat Patch
Number of Bands 2
Return Loss -10dB
Gain 3dBi, 4.5dBi
Power - Max 2 W
Features Cable - 100mm
Termination U.FL (UMCC), IPEX MHF1
Mounting Type Adhesive
Height (Max) 0.004" (0.10mm)
Applications WLAN, Zigbee™
Base Product Number 146153
Standard Package 3,200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.71.0000
Win Source Part Number 853999-1461530100
Ultra Librarian 3D Model Ultra Librarian 1461530100 CAD Model

Description

The 853999-1461530100 is an RF Antenna designed for wireless communication applications such as WLAN and Zigbee™ from Molex, LLC.

  • Frequency Range: 2.4GHz to 2.483GHz and 5.15GHz to 5.85GHz
  • Design: Flat Patch
  • Gain: 3dBi @ 2.4GHz and 4.5dBi @ 5GHz
  • Power Handling: 2W
  • Return Loss: -10dB
  • Termination: U.FL (UMCC) and IPEX MHF1 connectors
  • Cable Length: 100mm
  • Mounting Type: Adhesive
  • Height: 0.004" (0.10mm)
  • Packaging: Bulk
  • Series: 146153
