172298-1110

Part No 172298-1110
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings

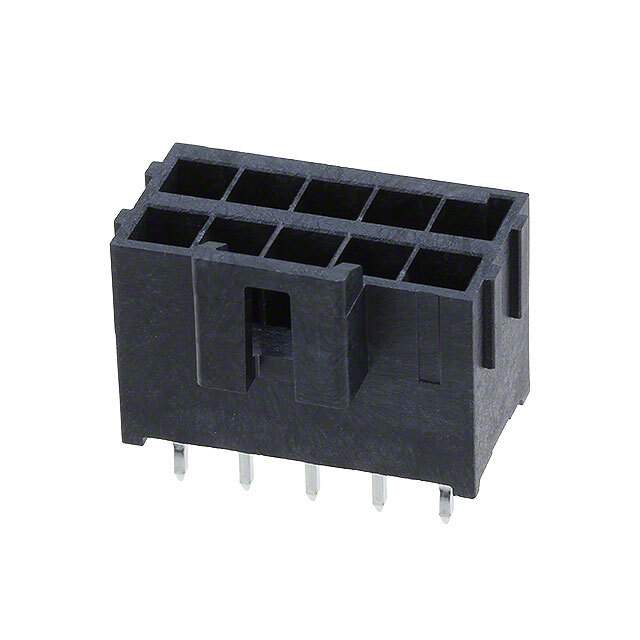

Description Conn; Rect; W-to-B; Header; Vert; 3.50mm Pitch; 2-Row; 10 Pos; Ultra-Fit; Tin Plate; Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Plating Tin
Country of Origin US
Fastening Type Latch
Gender Male
Mount Through Hole
Number of Circuits 10
Number of Contacts 10
Number of Pins 10
Number of Positions 10
Number of Rows 2
Orientation Vertical
Pitch 3.5052 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Row Spacing 4.5974 mm
Termination Kinked Pin
Win Source Part Number 1041780-172298-1110
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 172298-1110 CAD Model

Description

The Molex 1041780-172298-1110 is a 10-position male connector with a pitch of 3.5052 mm.

  • Positions: 10
  • Pitch: 3.5052 mm
  • Color: black
  • Contact Plating: tin
  • Number of Rows: 2
  • Row Spacing: 4.5974 mm
  • Height: 10
  • Width: 10
  • Halogen-Free: yes
  • RoHS Compliant: yes
  • Mounting Type: through-hole
  • Suitable for: circular connectors - housings
