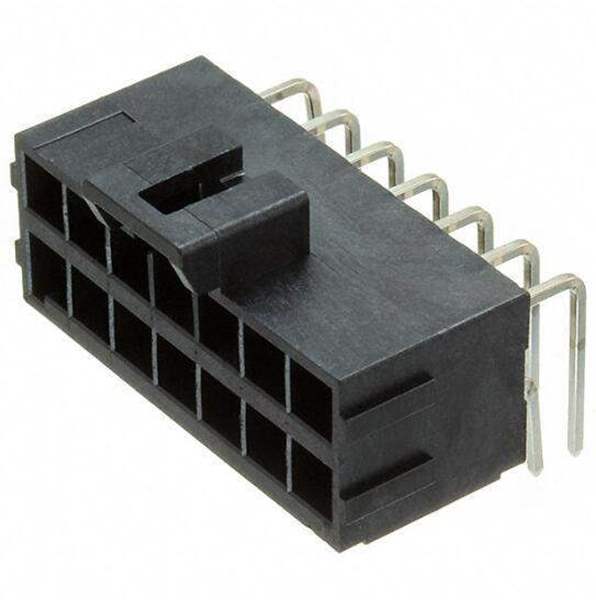

1723161114Molex
Same model may have multiple batches, images only for reference.

1723161114

Part No 1723161114
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 14POS 3.5MM
Datasheet
1723161114 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series Ultra-Fit 172316
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.138" (3.50mm)
Number of Positions 14
Row Spacing - Mating 0.181" (4.60mm)
Number of Positions Loaded All
Win Source Part Number WS1206351-1723161114
Ultra Librarian 3D Model Ultra Librarian 1723161114 CAD Model

Description

Ultra-Fit Tangless connector is a wire-to-board system that offers a 3.50mm pitch, a higher-current rating of 14.0A, and superior design options for flexibility and efficient assembly
