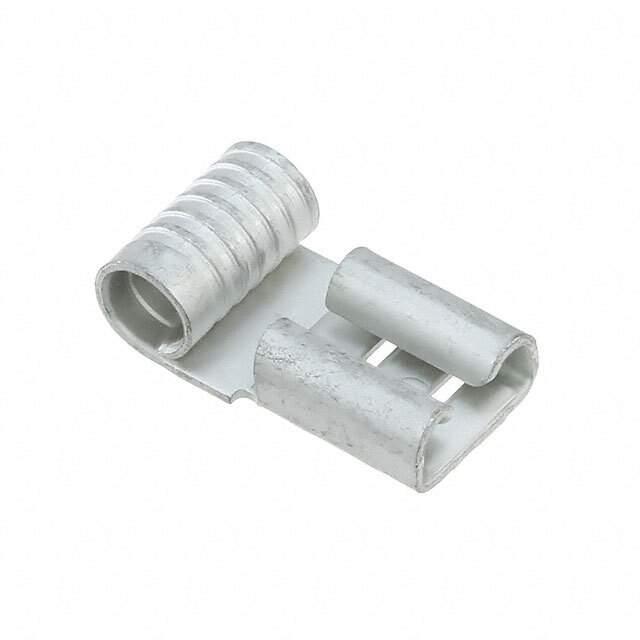

Same model may have multiple batches, images only for reference.

0190080063

Get a Quote

Part No	0190080063
Manufacturer	Molex, LLC
Catalog	Terminals
Description	CONN QC RCPT 10-12AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer	Molex
Packaging	Bulk
Terminal Type	Angled - 90°, Flag
Gender	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	0.315" (8.00mm)
Termination	Crimp
Wire Gauge	10-12 AWG
Insulation	Non-Insulated
Mounting	Free Hanging (In-Line), Right Angle
Contact Material	Brass
Contact Finish	Tin
Base Product Number	019008
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Part Number	WM14193TRINACTIVE,19008-0063,WM14193TR-ND,WM14193CT,190080063,WM14193TR,0190080063-ND,WM14193CT-ND,019008-0063,WM14193,C-1012
Standard Package	1
Win Source Part Number	1333755-0190080063
Ultra Librarian 3D Model	Ultra Librarian 0190080063 CAD Model

Alternative Products

Description

The Molex quick disconnect connector is a female connector with a Win Source Part Number of 1333755-0190080063.

Packaging: Bulk
Category: Connectors, Interconnects > Terminals > Quick Connects, Quick Disconnect Connectors
Termination: Crimp
Contact Finish: Tin
Wire Gauge: 10-12 AWG
Contact Material: Brass
Insulation: Non-Insulated
Terminal Type: Angled - 90°, Flag
Tab Width: 0.250" (6.35mm)
Tab Thickness: 0.032" (0.81mm)
Tab Length: 0.315" (8.00mm)
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS: 8536.90.4000
ROHS3 Compliant: Yes
