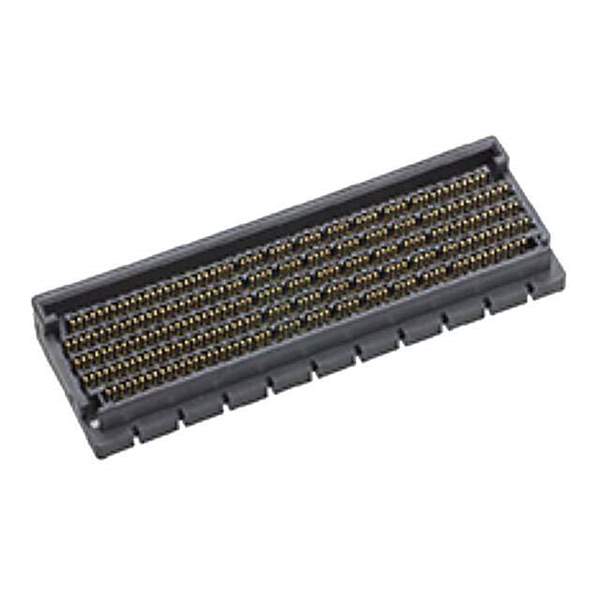

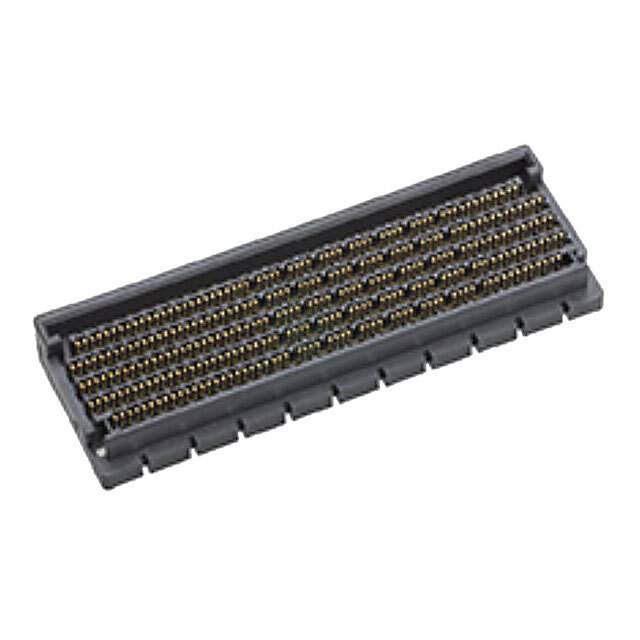

203456-0003 Real Image
Same model may have multiple batches, images only for reference.

203456-0003

Part No 203456-0003
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Stacking HDR/RCP 699 POS 8mm/11mm Stack Height 1.3mm Solder ST SMD Emboss T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Gold, Nickel
Contact Plating Gold
Country of Origin CN
Current Rating 1 A
Height 8.11 mm
Max Operating Temperature 105 °C
Min Operating Temperature -55 °C
Number of Circuits 699
Number of Contacts 699
Number of Rows 11
Orientation Vertical
Plating Tin
RoHS Compliant
Voltage Rating 30 V
Win Source Part Number 1228061-203456-0003
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 203456-0003 CAD Model

Description

The Molex Circular Connectors - Housings are perfect for your electronic projects. With a voltage rating of 30 V and a current rating of 1 A, this connector can handle most low-power applications.

  • Voltage Rating: 30 V
  • Current Rating: 1 A
  • Contacts/Circuits: 699
  • Orientation: Vertical
  • Contact Plating: Gold
  • Height: 8.11 mm
  • Plating: Tin
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -55 °C
  • Maximum Operating Temperature: 105 °C
  • Country of Origin: China
  • Popularity: Medium
  • Supply and Demand Status: limited
