Same model may have multiple batches, images only for reference.

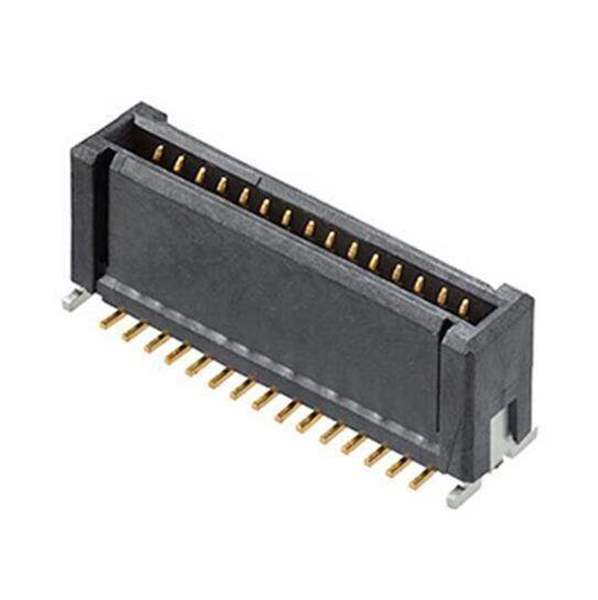

2039550301Molex
Same model may have multiple batches, images only for reference.

2039550301

Part No 2039550301
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description SLIMSTACK BOARD-TO-BOARD CONNECT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Package Box
Product Status Active
Win Source Part Number WS1206805-2039550301
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Obsolete
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 5mm
Height Above Board 0.114\
Ultra Librarian 3D Model Ultra Librarian 2039550301 CAD Model

Description

Position Connector
