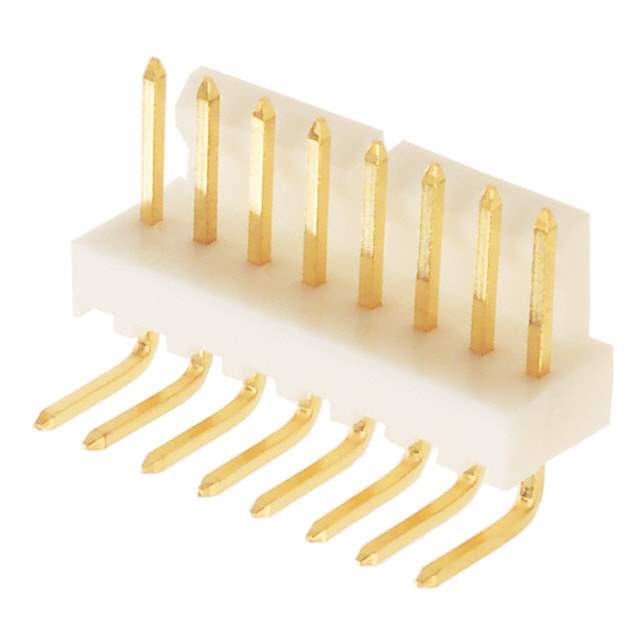

0022122084 Real Image
Same model may have multiple batches, images only for reference.

0022122084

Part No 0022122084
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2.54MM / Connector Header Through Hole, Right Angle 8 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series KK254, 7478
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.141" (3.58mm)
Insulation Height 0.250" (6.35mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA) , Nylon
Material Flammability Rating UL94 V-0
Insulation Color White
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002212
Standard Package 2,850
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338774-0022122084
Ultra Librarian 3D Model Ultra Librarian 0022122084 CAD Model

Description

The 0022122084 is a male pin header connector from Molex's KK254 series. It has 8 positions and is designed for board-to-board or cable applications.

  • Series: KK254
  • Positions: 8
  • Application: Board-to-Board, Cable
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -40°C to 105°C
  • Contact Finish: Gold, 20.0µin (0.51µm)
  • Packaging: Bulk
