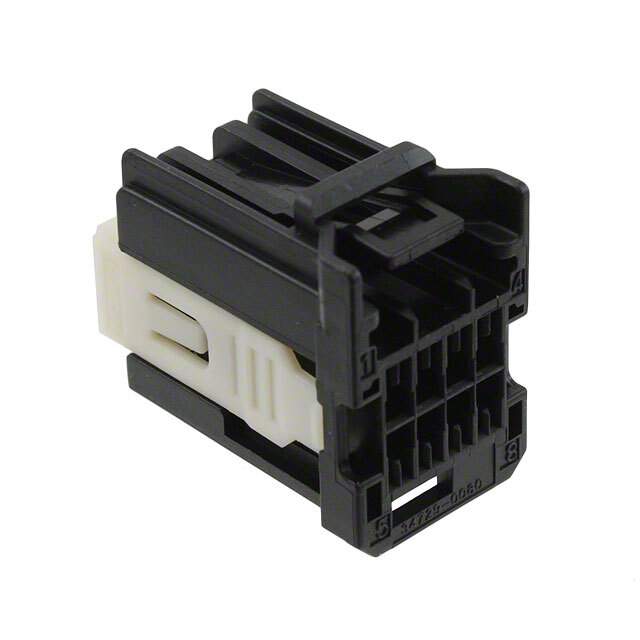

34729-0080 Real Image
Same model may have multiple batches, images only for reference.

34729-0080

Part No 34729-0080
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Stac64 Receptacle Housing, 8 Circuits, Dual Row, Polarization A, Black, Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Rectangular
Contact Material Brass
Contact Plating Tin
Country of Origin CN
Current Rating 10 A
Depth 25.5 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 22.7 mm
Housing Material Thermoplastic
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 2
Orientation Vertical
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536694040
Termination Through Hole
Voltage Rating 500 V
Voltage Rating (DC) 500 V
Width 14.76 mm
Win Source Part Number 985180-34729-0080
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 34729-0080 CAD Model

Description

The Molex, LLC 985180-34729-0080 is a rectangular connector with 8 positions and 8 contacts.

  • Positions: 8
  • Contacts: 8
  • Voltage Rating: 500 V
  • Current Rating: 10 A
  • Termination: Through-hole
  • Housing Material: Thermoplastic
  • Supply and Demand Status: Shortage
