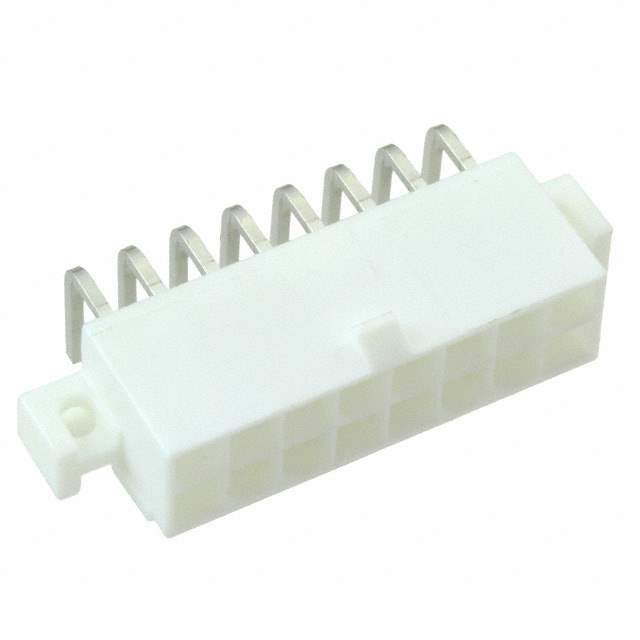

39-29-1167 Real Image
Same model may have multiple batches, images only for reference.

39-29-1167

Part No 39-29-1167
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Wire to Board HDR 16 POS 4.2mm Solder RA Side Entry Thru-Hole Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Male
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 6 A
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Nylon
Lead Pitch 4.2 mm
Material Brass
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 16
Number of Contacts 16
Number of Positions 16
Number of Rows 2
Orientation Right Angle
Packaging Bulk
Pitch 4.2 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Row Spacing 5.5 mm
Termination Solder
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Win Source Part Number 1041593-39-29-1167
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39-29-1167 CAD Model

Description

The 39-29-1167 is a 16-position, 2-row, right-angle, through-hole circular connector manufactured by Molex, LLC.

  • Supply and Demand Status: Short
  • Pitch: 4.2 mm
  • Row Spacing: 5.5 mm
  • Contact Material: Brass
  • Voltage Rating: 600V
  • Current Rating: 6A
  • Contact Resistance: 10 mΩ
  • Material: Nylon
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
  • ELV Standards: Yes
