Same model may have multiple batches, images only for reference.

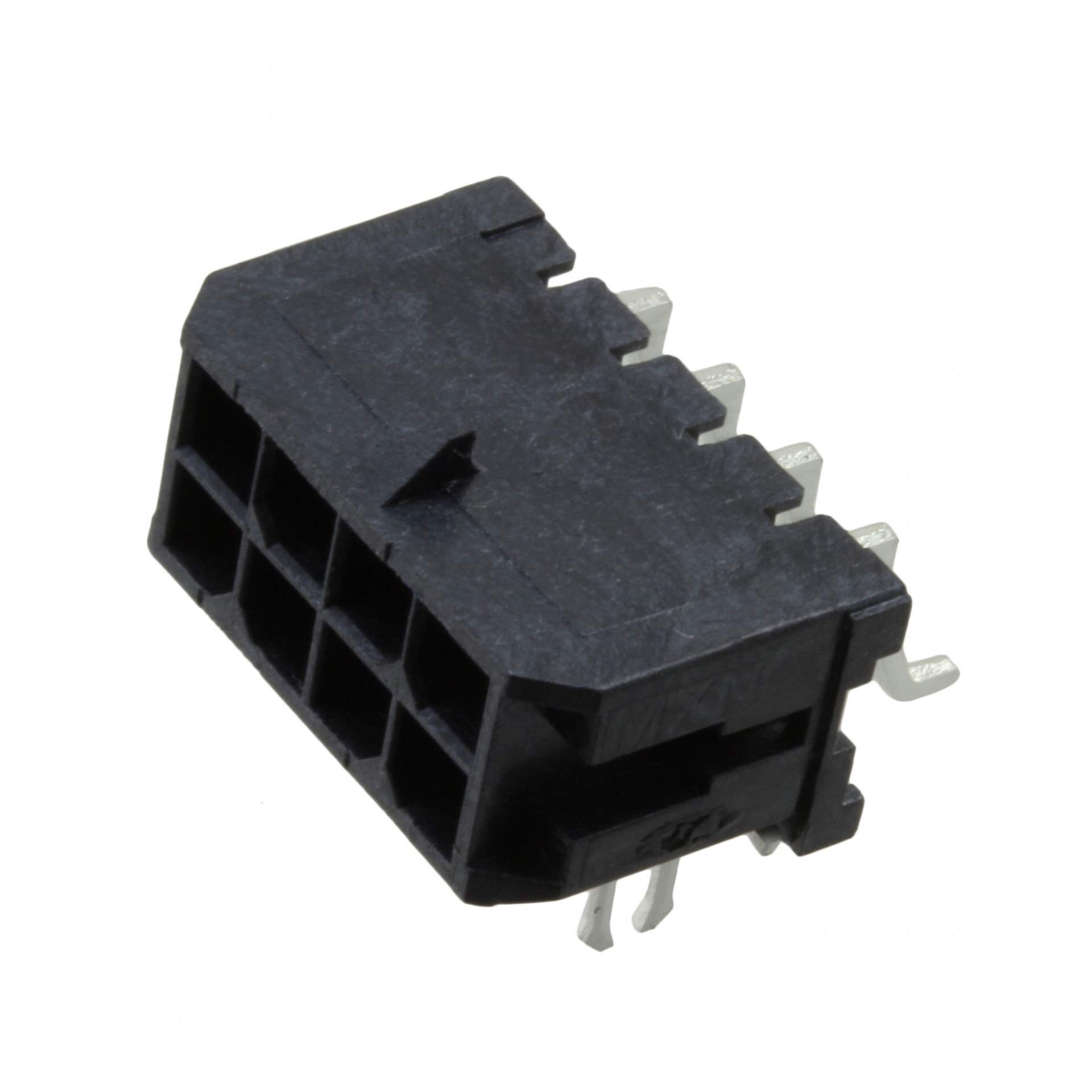

43045-0806 Real Image
Same model may have multiple batches, images only for reference.

43045-0806

Part No 43045-0806
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Micro-Fit 3.0 Surface Mount PCB Header, Right Angle, 8 Contacts, 2 Rows, 3mm Pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0806
Color Black
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 5 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Compliant
Halogen Free Low Halogen
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Lead Pitch 3 mm
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 2
Orientation Right Angle
Pitch 3 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Row Spacing 3 mm
Schedule B 8536695050, 8536695050
Termination SMD/SMT
Voltage Rating 600 V
Voltage Rating (DC) 250 V
Win Source Part Number 1012444-43045-0806
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 43045-0806 CAD Model

Description

Molex, LLC's 43045-0806 is an 8-position, 3mm pitch black circular connector housing.

  • Positions: 8
  • Pitch: 3mm
  • Color: Black
  • Category: Circular Connector Housing
  • Rows: Two
  • Row Spacing: 3mm
  • Mounting Technology: SMD/SMT
  • Contact Material: Brass
  • Voltage Rating: 600 V
  • Current Rating: 5 A
  • Contact Resistance: 10 mΩ
  • RoHS Compliant: Yes
  • Housing Material: Thermoplastic
  • Contacts: 8
  • Orientation: Right-Angle
  • Contact Plating: Tin
  • Supply and Demand: Shortage
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
  • Mounting: Surface Mountable
  • Flammability Rating: UL94 V-0
