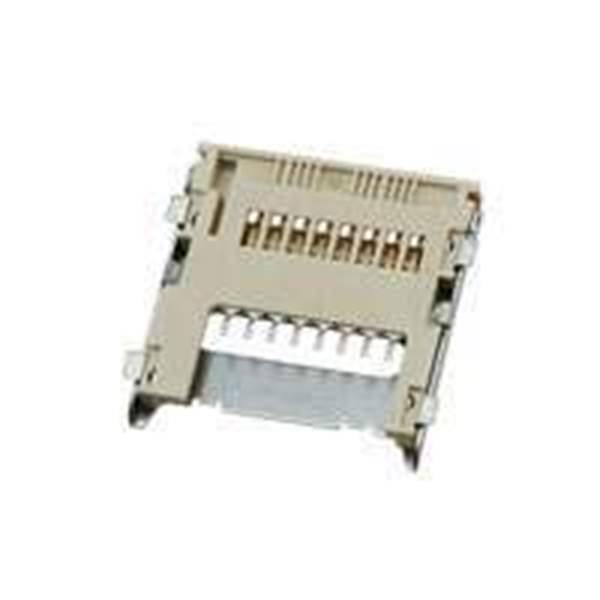

5009010801 Molex
Same model may have multiple batches, images only for reference.

5009010801

Part No 5009010801
Manufacturer Molex, LLC
Catalog Memory Connectors - PC Card Sockets
Description CONN MICRO SD CARD R/A SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsMemory ConnectorsPC Card Sockets
Manufacturer Molex
Series 500901
Part Status Last Time Buy
Card Type Secure Digital - microSD?
Number of Positions 8
Connector Type Connector and Ejector
Insertion, Removal Method Hinged Lid
Mounting Type Surface Mount, Right Angle
Height Above Board 0.076" (1.92mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 20.0μin (0.51μm)
Base Product Number 500901
Packaging Tape & Reel (TR)Cut Tape (CT)
Ultra Librarian 3D Model Ultra Librarian 5009010801 CAD Model

Description

8 Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Goldconn
