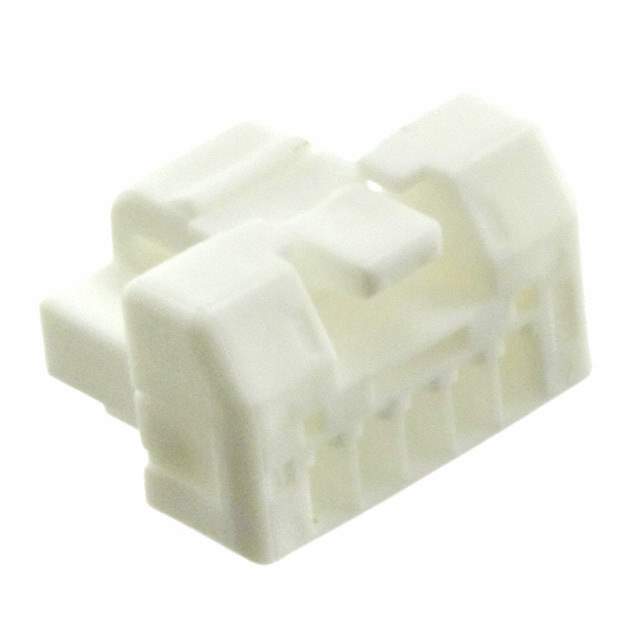

502380-0500 Real Image
Same model may have multiple batches, images only for reference.

502380-0500

Part No 502380-0500
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Conn Housing RCP 5 POS 1.25mm Crimp ST Cable Mount Bag/Carton
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Non-Gendered, Plug
Contact Gender Male
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 1 A
Depth 7.05 mm
Fastening Type Latch
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Color White
Housing Material Polybutylene
Insulation Resistance 100 MΩ
Length 9.35 mm
Material Polybutylene
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -25 °C
Mount Cable, Free Hanging
Number of Contacts 5
Number of Pins 5
Number of Positions 5
Number of Rows 1
Orientation Straight
Pitch 1.25 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050
Termination Crimp
Voltage Rating 50 V
Voltage Rating (AC) 50 V
Width 5.45 mm
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Win Source Part Number 993501-502380-0500
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 502380-0500 CAD Model

Description

The Molex, LLC OEM Part is a male non-gendered plug type connector with 5 positions and a pitch of 1.25 mm.

  • Positions: 5
  • Pitch: 1.25 mm
  • Termination Type: Crimp
  • Fastening Type: Latch
  • Maximum Operating Temperature: 85°C
  • Minimum Operating Temperature: -25°C
  • Housing Material: Polybutylene
  • Housing Color: White
  • Length: 9.35 mm
