5023820370

Get a Quote

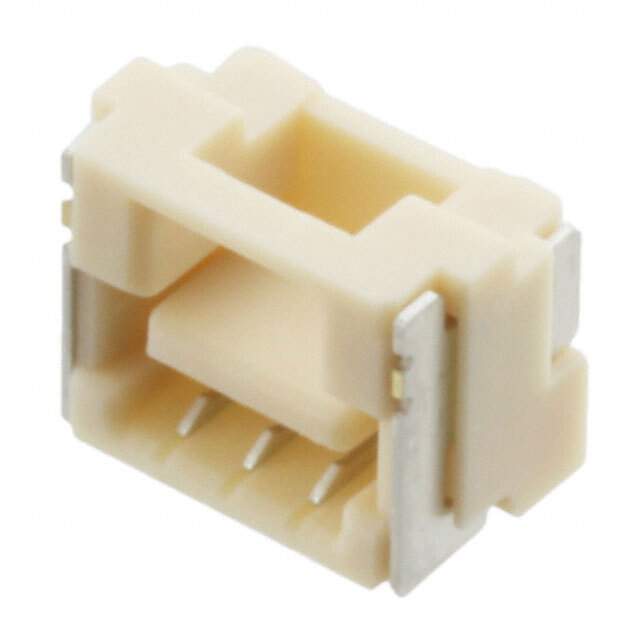

Part No	5023820370
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 3POS 0.049 TIN SMD / 3 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Cable/Wire
Number of Positions	3
Number of Positions Loaded	All
Pitch - Mating	0.049" (1.25mm)
Number of Rows	1
Mounting	Surface Mount
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Insulation Color	Natural
Insulation Height	0.173" (4.40mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Solder Retention
Current Rating (Amps)	1A
Voltage Rating	50V
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material	Resin
Contact Material	Copper Alloy
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	502382
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM3918DKR,WM3918CT,502382-0370,WM3918TR
Standard Package	1,400
Win Source Part Number	1332913-5023820370
Ultra Librarian 3D Model	Ultra Librarian 5023820370 CAD Model

Alternative Products

Description

The Molex 1332913-5023820370 is a 3-position receptacle connector designed for board-to-cable or wire applications.

Rows: 1-row design
Contact Type: Forked contact type
Fastening Type: Latch holder fastening type for secure connections
Voltage Rating: 50V
Material Flammability Rating: UL94 V-0
Contact Material: Copper alloy
Contact Finish: Tin
Applications: Automotive, general-purpose, industrial, lighting, and medical applications
Mounting Type: Surface mount
Insulation Material: Resin
Pitch: 0.049" (1.25mm)
Current Rating: 1A
Shrouded: Unshrouded
Insulation Height: 0.173" (4.40mm)
Compliance: ROHS3 compliant
Packaging: Reel packaging
