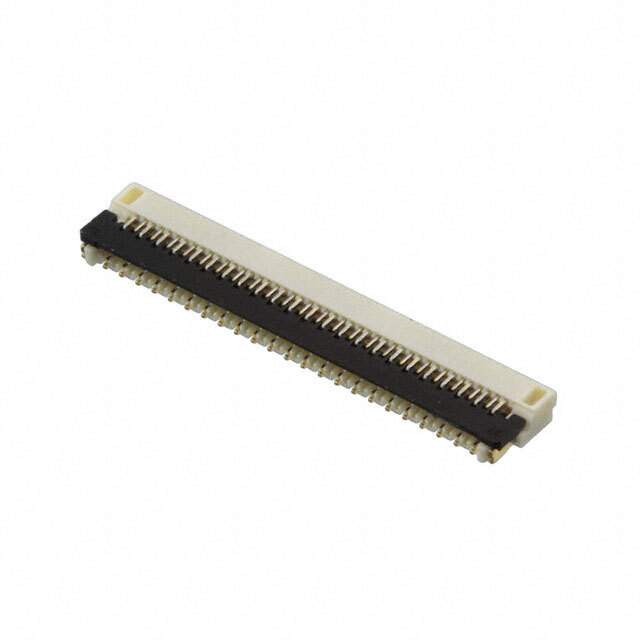

5035664500 Real Image
Same model may have multiple batches, images only for reference.

5035664500

Part No 5035664500
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 45POS 0.3MM R/A / 45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex
Series Easy-On 503566
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 45
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP) , Glass Filled
Actuator Material Polyamide (PA) , Nylon, Glass Filled
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0, UL94 HB
Current Rating (Amps) 0.2A
Housing Color White
Actuator Color Black
Mating Cycles 10
Base Product Number 503566
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1339356-5035664500
Ultra Librarian 3D Model Ultra Librarian 5035664500 CAD Model

Description

The Molex Easy-On 503566 series 1339356-5035664500 is a surface mount, right angle FFC/FPC connector assembly with 45 positions and a pitch of 0.30 mm.

  • Series: Easy-On 503566
  • Part Number: 1339356-5035664500
  • Mounting Type: Surface Mount
  • Orientation: Right Angle
  • Connector Type: FFC/FPC
  • Number of Positions: 45
  • Pitch: 0.30 mm
  • Features: Solder Retention
  • Insulation Material: Liquid Crystal Polymer, Glass Filled
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50 V
  • Current Rating: 0.2 A
  • Compliance: Lead-Free, RoHS Compliant
  • Application: FPC
  • Packaging: Tape and Reel
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -40 to 85 °C
  • Lifecycle Status: Obsolete, Limited Supply
