Same model may have multiple batches, images only for reference.

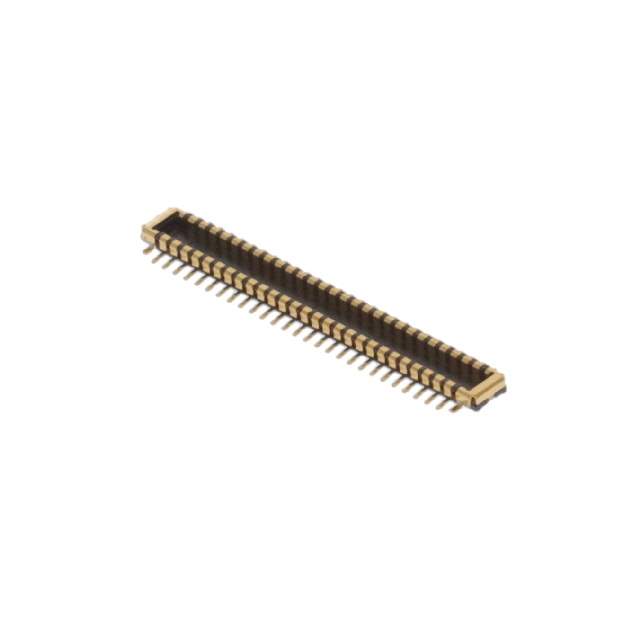

5050705422 Real Image
Same model may have multiple batches, images only for reference.

5050705422

Part No 5050705422
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 54POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 29 Weeks
Features 54 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Manufacturer Molex, LLC
Series SlimStack Armor 505070
Package Reel - TR
Mounting Surface Mount
Family Name 505070
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 23-5050705422DKR, 23-5050705422TR, 5050705422-ND, 505070-5422, 23-5050705422CT
Quantity per package 8000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907086-5050705422
Ultra Librarian 3D Model Ultra Librarian 5050705422 CAD Model

Description

The Molex, LLC 907086-5050705422 is a SlimStack Armor 505070 series 54 position connector plug with outer shroud contacts surface mount gold.

  • Package: reel - TR
  • Mounting: surface mount
  • Popularity: high
  • Supply and Demand: balanced
