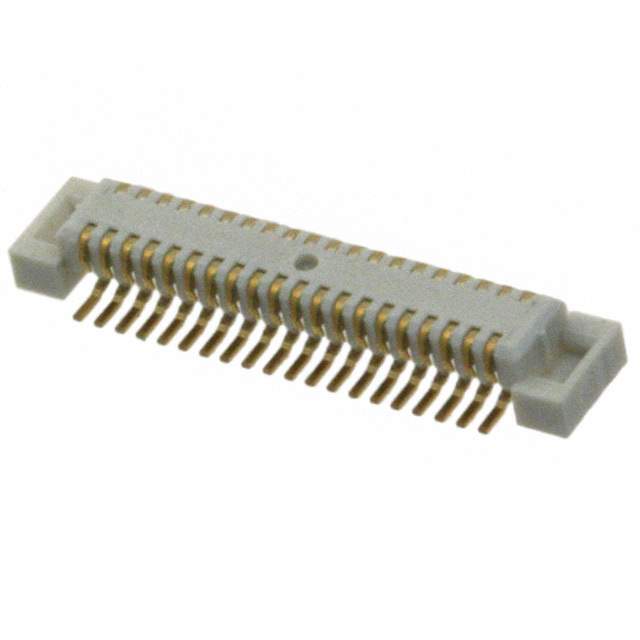

AXK6F16547YG Real Image
Same model may have multiple batches, images only for reference.

AXK6F16547YG

Part No AXK6F16547YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 16POS SMD GOLD / Narrow pitch connectors (0.5mm pitch) Two-piece structure and 0.5mm pitch.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Reel
Connector Type Header, Center Strip Contacts
Number of Positions 16
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Style SMD
Contact Finish Gold
Mated Stacking Heights 2.5mm
Height Above Board 0.069" (1.75mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803221-AXK6F16547YG
Ultra Librarian 3D Model Ultra Librarian AXK6F16547YG CAD Model

Description

The Panasonic Electric Works AXK6F16547YG Header is an ideal solution for your connector applications.

  • Pitch: 0.020" (0.50mm)
  • Number of Positions: 16
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Height Above Board: 0.069" (1.75mm)
  • Mated Stacking Height: 2.5mm
