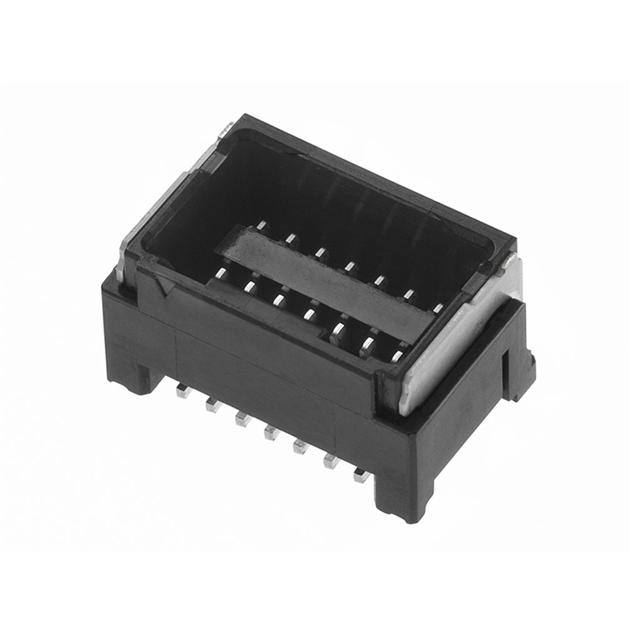

5054331271 Real Image
Same model may have multiple batches, images only for reference.

5054331271

Part No 5054331271
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 12POS 1.25MM / Connector Header Surface Mount 12 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 12
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.285" (7.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC/DC
Mated Stacking Heights 8.6mm
Contact Finish Thickness - Post 39.4µin (1.00µm)
Applications Automotive, General Purpose, Industrial
Base Product Number 505433
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM26809TR,WM26809DKR,505433-1271,5054331271-ND,WM26809CT
Standard Package 500
Win Source Part Number 1332838-5054331271
Ultra Librarian 3D Model Ultra Librarian 5054331271 CAD Model

Description

The 1332838-5054331271 is a male pin header connector manufactured by Molex.

  • Positions: 12
  • Mounting Type: Surface Mount Technology (SMT)
  • Feature: Shrouded 4 Wall
  • Insulation Color: Black
  • Win Source Part Number: 1332838-5054331271
  • Voltage Rating: 50VAC/DC
  • Standard Package: 500
  • Operating Temperature: -40°C to 105°C
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • MSL Level: 1 (unlimited)
