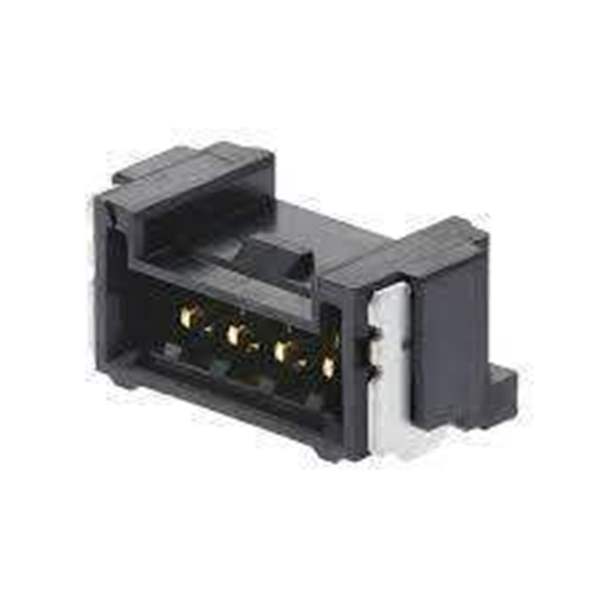

5055670531 Molex
Same model may have multiple batches, images only for reference.

5055670531

Part No 5055670531
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 1.25WB SGL RA ASSY 5CKT EMBPKG B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203355-5055670531
Manufacturer Molex
Category Connectors, Interconnects- Rectangular Connectors -Headers, Male Pins
Series Micro-Lock PLUS 505567
Package Tape & Reel (TR) Cut Tape (CT)
Connector Type Header
Product Status Active
Insulation Height 0.154" (3.90mm)
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC/DC
Ultra Librarian 3D Model Ultra Librarian 5055670531 CAD Model

Description

Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm)
