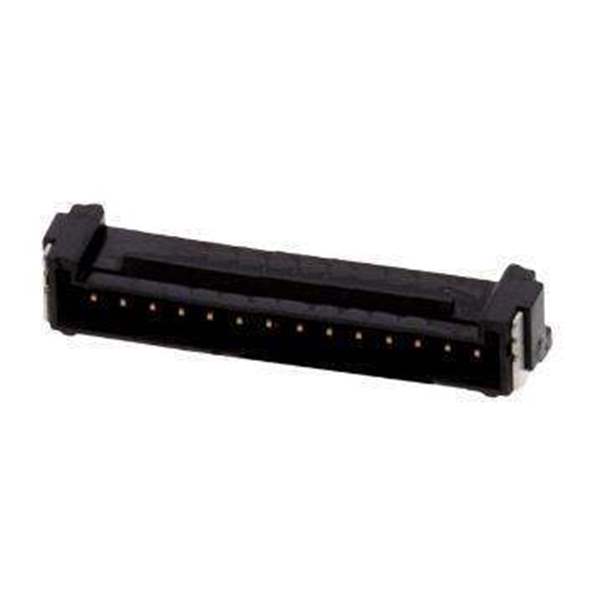

5055671481Molex
Same model may have multiple batches, images only for reference.

5055671481

Part No 5055671481
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 14POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Tape & Reel (TR)
Product Status Active
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Shrouding Shrouded - 4 Wall
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.154" (3.90mm)
Win Source Part Number WS1208876-5055671481
Ultra Librarian 3D Model Ultra Librarian 5055671481 CAD Model

Description

Connector Header Surface Mount, Right Angle 14 position 0.049" (1.25mm)
