Same model may have multiple batches, images only for reference.

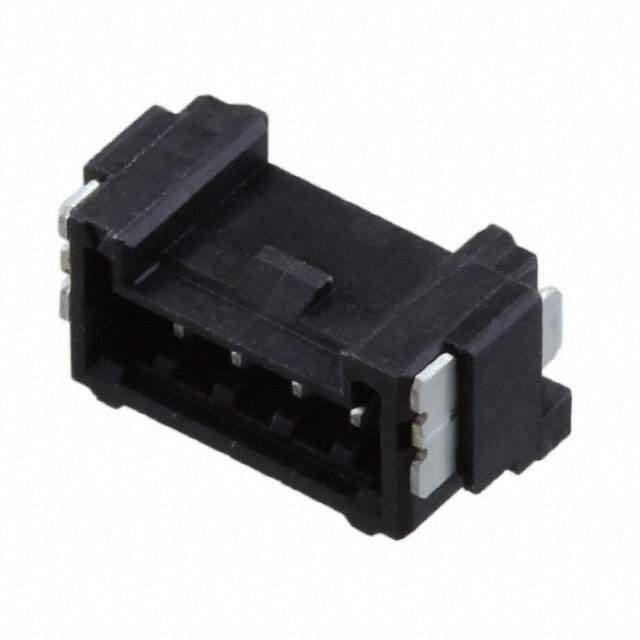

505568-0471 Real Image
Same model may have multiple batches, images only for reference.

505568-0471

Part No 505568-0471
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 4 POS 1.25mm Solder ST Top Entry SMD Micro-Lock PLUS T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 105 °C
Contact Material Nickel, Tin
Country of Origin MY
Current Rating 1.5 A
Height 4.4 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Number of Circuits 4
Number of Contacts 4
Number of Rows 1
Orientation Vertical
RoHS Compliant
Voltage Rating 50 V
Win Source Part Number 1038992-505568-0471
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 505568-0471 CAD Model

Description

This Molex, LLC circular connector housing is a reliable option for your electronic components.

  • Voltage Rating: 50 V
  • Current Rating: 1.5 A
  • Contacts: 4
  • Circuits: 4
  • Orientation: vertical
  • Height: 4.4 mm
  • Contact Material: nickel and tin
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
  • RoHS Compliant: Yes
  • Supply and Demand Status: short
