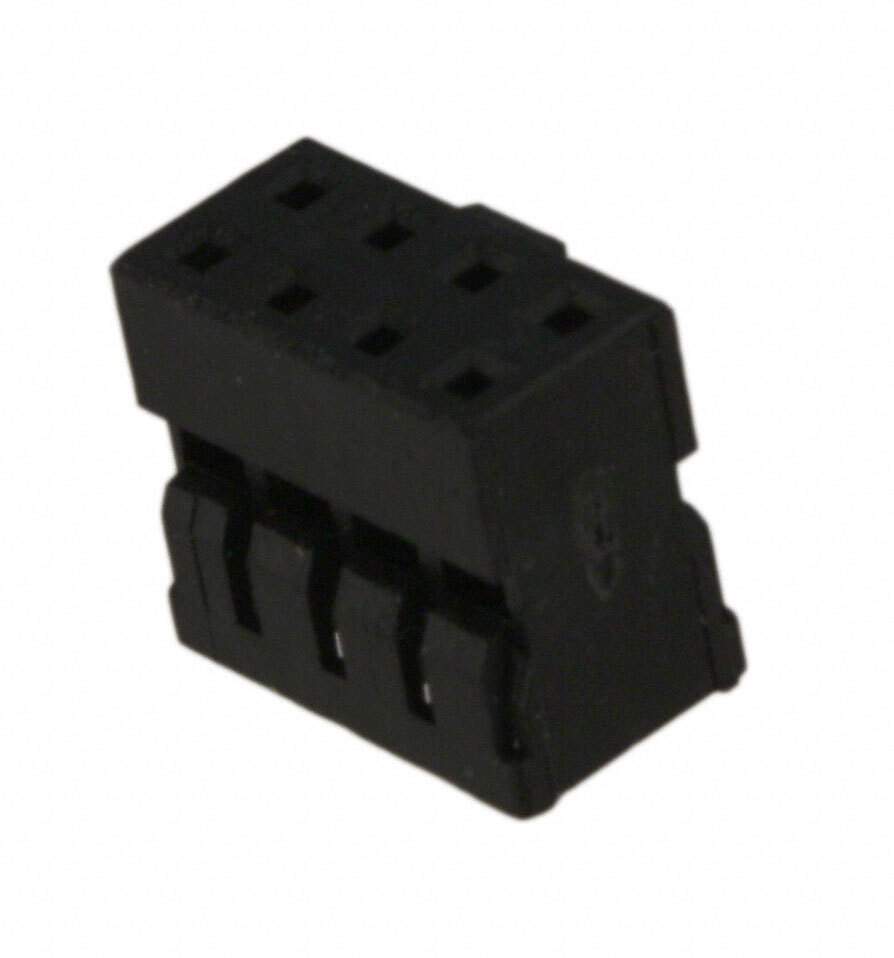

51110-0860 Real Image
Same model may have multiple batches, images only for reference.

51110-0860

Part No 51110-0860
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 8 Positions Dual Row 2.5 mm Pitch Female Socket Latch Lock Receptacle Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Female
Country of Origin SG
Current Rating 500 mA
Depth 7 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Housing Material Polyester
Length 8.2 mm
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 125.125 kV
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 8
Number of Pins 8
Number of Positions 8
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 2 mm
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Crimp
Width 4.8 mm
Win Source Part Number 972647-51110-0860
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 51110-0860 CAD Model

Description

The Molex 972647-51110-0860 is an 8 position, straight orientation, cable mount, female connector.

  • Positions: 8
  • Orientation: Straight
  • Mount: Cable mount
  • Gender: Female
  • Current Rating: 500mA
  • Voltage Rating: 125.125kV
  • Contact Material: Copper alloy
  • Contact Plating: Gold plating
  • Housing Material: Polyester
  • Housing Color: Natural
  • Category: Circular Connectors - Housings
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Maximum Operating Temperature: 105C
  • Minimum Operating Temperature: -40C
