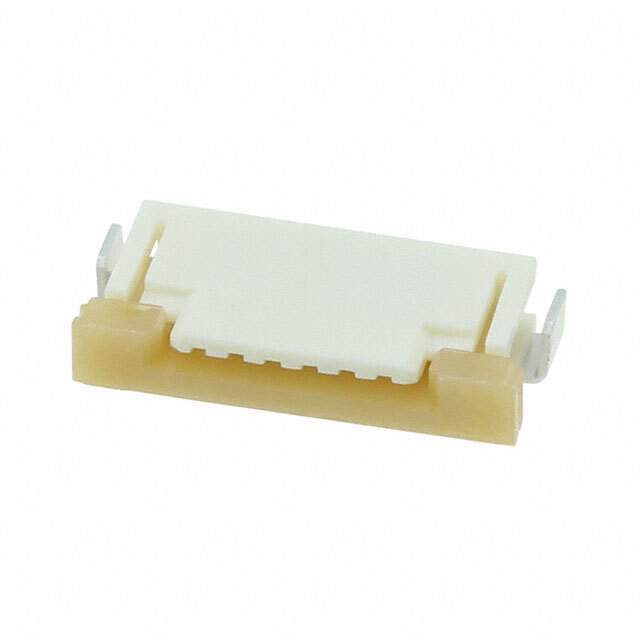

52207-0633 Real Image
Same model may have multiple batches, images only for reference.

52207-0633

Part No 52207-0633
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC Connector F 6 POS 1.27mm Solder RA Thru-Hole Box/Carton
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Top
Contact Material Bronze
Contact Plating Silver, Tin
Contact Resistance 20 mΩ
Country of Origin MY
Current Rating 1 A
Depth 7.6 mm
Flammability Rating UL94 V-0
Gender Receptacle
Housing Color White
Housing Material Nylon
Insulation Resistance 100 MΩ
Length 12.3 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -30 °C
Mount Surface Mount
Number of Circuits 6
Number of Contacts 6
Number of Pins 6
Number of Positions 6
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel
Pitch 1 mm
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 125 V
Win Source Part Number 1039095-52207-0633
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52207-0633 CAD Model

Description

This component is a reliable choice for electronic designs that require a 6-position, 1mm pitch, right-angle receptacle.

  • Voltage Rating: 125V
  • Current Rating: 1A
  • Housing Material: Nylon
