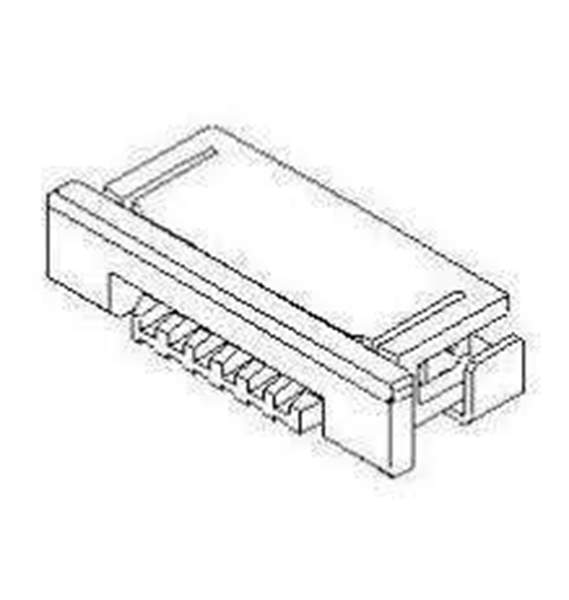

52271-1690 Molex
Same model may have multiple batches, images only for reference.

52271-1690

Part No 52271-1690
Manufacturer Molex, LLC
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description FFC & FPC Connectors RA SMT ZIF BOTTOM 16
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Category FFC & FPC Connectors
RoHS N
Product Board Mount
Number of Positions 16 Position
Pitch 1 mm
Termination Style SMD/SMT
Mounting Angle Right Angle
Contact Plating Tin
Current Rating 500 mA
Ultra Librarian 3D Model Ultra Librarian 52271-1690 CAD Model

Description

FFC & FPC Connectors RA SMT ZIF BOTTOM 16
