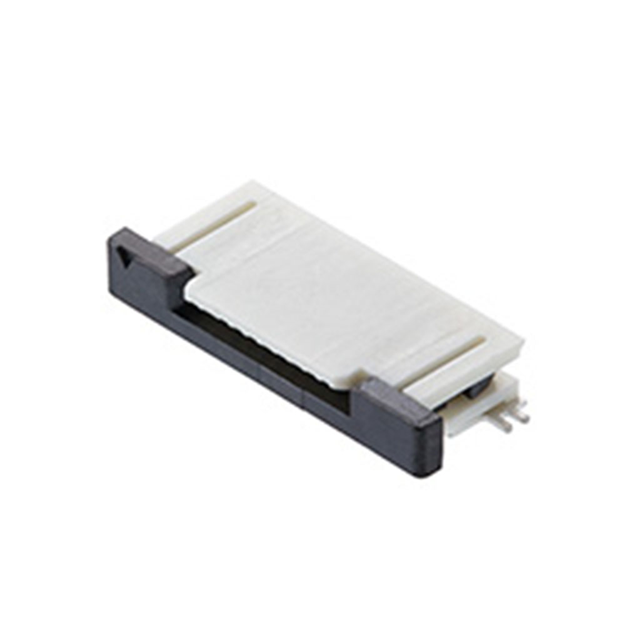

The Molex 52435-2433 is a Flat Flex Cable (FFC) connector designed to provide a reliable connection for FFC/FPC (Flexible Printed Circuit) cables within various electronic devices. These connectors are commonly used where space is limited and a secure, compact connection is required.

Applications

• LCD and display connections
• Portable electronic devices
• Notebook computers
• Printers
• Scanners

Features

• FFC/FPC Connector
• Number of Circuits: 24
• Pitch: 0.5 mm
• Surface Mount Technology (SMT)
• RoHS Compliant

Benefits

• High-density connections due to fine pitch.
• Reliable signal transmission.
• Compact size for space-saving designs.
• Easy integration into automated assembly processes.
• Environmentally friendly due to RoHS compliance.

Additional Details

The Molex 52435-2433 features a top contact configuration. It is constructed with high-temperature thermoplastic for reflow soldering compatibility. The operating temperature typically ranges from -40°C to +85°C (verify with the datasheet). Proper insertion and extraction techniques are vital to prevent damage to the connector and ensure optimal performance. The recommended FFC/FPC cable thickness should meet manufacturer specifications.

Note: Always refer to the manufacturer's datasheet for precise technical specifications, mating recommendations, and application guidelines.
