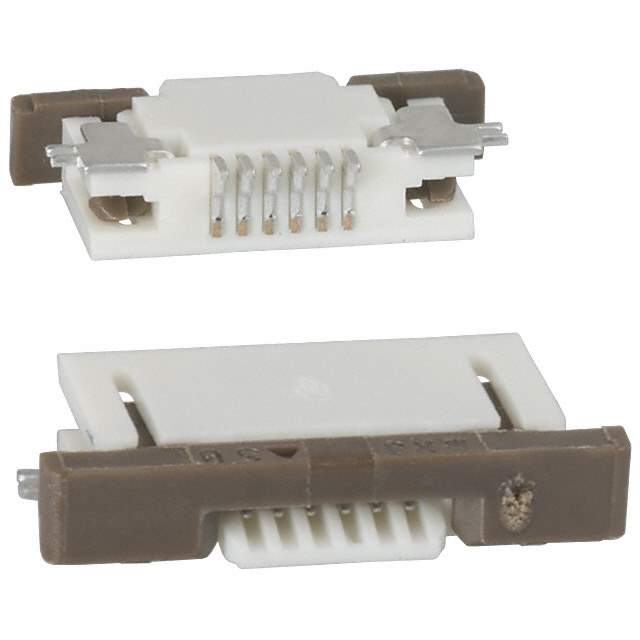

52746-0670 Real Image
Same model may have multiple batches, images only for reference.

52746-0670

Part No 52746-0670
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 6POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Status Obsolete
Flat Flex Type FFC, FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 6
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Dielectric Material Polyamide (PA46), Nylon 4/6
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 758428-52746-0670
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 52746-0670 CAD Model

Description

The Molex electronic component (product) with Win Source Part Number 758428-52746-0670 is an SMT, right angle mounting style component with a zero insertion force (ZIF) feature.

  • Locking Feature: slide lock
  • Cable End Type: straight
  • Connector/Contact Type: contacts, bottom FFC, FPC
  • Thickness: 0.30mm
  • Housing Color: not available
  • Material Flammability Rating: UL94 V-0
  • Current Rating: 0.5A
  • Supply and Demand Status: balance.
