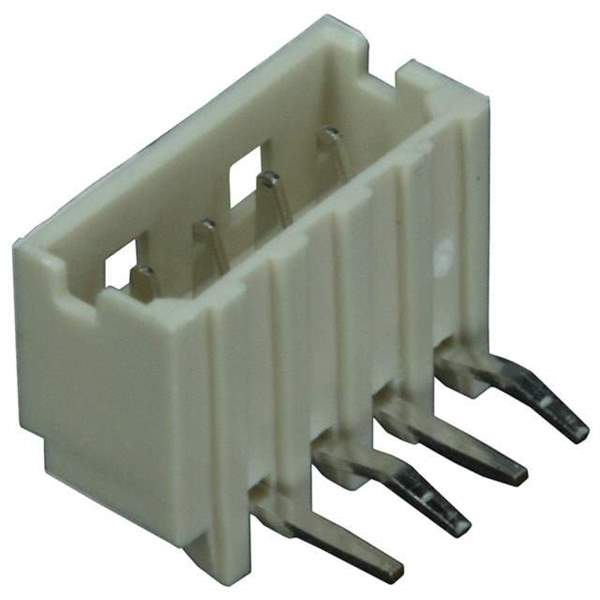

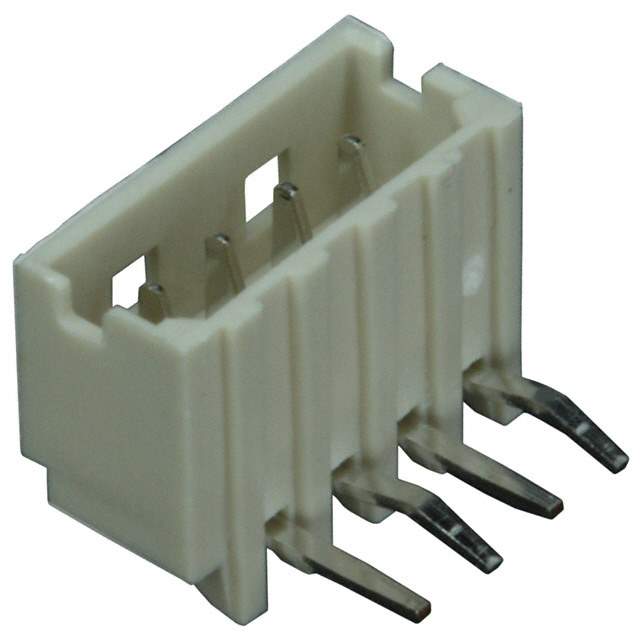

Same model may have multiple batches, images only for reference.

53015-0410

Name: 53015-0410
Brand: Molex, LLC
SKU: 1030931
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	53015-0410
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn IDC Connector HDR 4 POS 2mm IDT ST Cable Mount Automotive Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	0410
Color	Natural
Contact Material	Bronze, Tin
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	TW
Current Rating	2 A
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Housing Material	Nylon
Insulation Resistance	1 GΩ
Lead Free	Yes
Lead Pitch	2 mm
Maximum Operating Temperature	85 °C
Min Operating Temperature	-20 °C
Mount	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Pins	4
Number of Positions	4
Number of Rows	1
Orientation	Right Angle
Pitch	2 mm
Plating	Tin
Radiation Hardening	No
RoHS	Compliant
Termination	Solder
Voltage Rating	125 V
Voltage Rating (DC)	125 V
Win Source Part Number	1030931-53015-0410
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 53015-0410 CAD Model

Alternative Products

Description

The Molex, LLC 1030931-53015-0410 is a natural colored circular connector housing with a right angle orientation.

Positions: 4
Rows: 1
Pitch: 2 mm
Mounting: Surface mount (SMD)
Contact Plating: Tin
Housing Material: Nylon
Contact Material: Bronze with tin plating
Voltage Rating: 125 V
Current Rating: 2 A
Contacts: 4
Contact Resistance: 20 mΩ
Maximum Operating Temperature: 85 °C
Minimum Operating Temperature: -20 °C
Lead-Free: Yes
RoHS Compliant: Yes
Applications: Automotive, general purpose, and industrial
