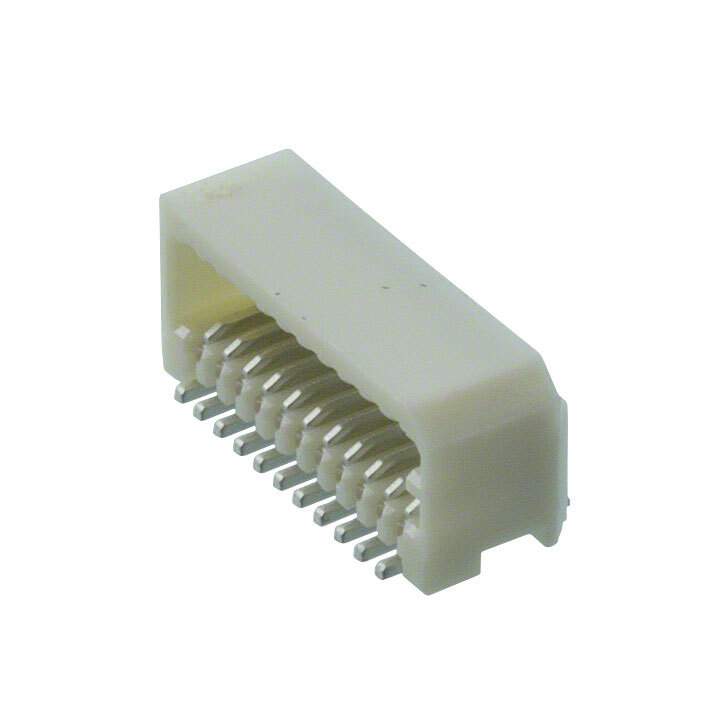

0533092270 Real Image
Same model may have multiple batches, images only for reference.

0533092270

Part No 0533092270
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HDR 22POS R/A SMD TIN / 22 Position Connector Header, Outer Shroud Contacts Surface Mount, Right Angle Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex
Series SlimStack 53309
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 22
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount, Right Angle
Contact Finish Tin
Contact Finish Thickness 120.0µin (3.05µm)
Height Above Board 0.185" (4.70mm)
Base Product Number 053309
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338722-0533092270
Ultra Librarian 3D Model Ultra Librarian 0533092270 CAD Model

Description

The Molex 53309 series SlimStack connector is a 22-position header with outer shroud contacts.

  • Mounting Type: Surface Mount
  • Pitch: 0.031” (0.80mm)
  • Height Above Board: 0.185” (4.70mm)
  • Contact Finish: Tin, 120.0µin (3.05µm)
  • Package: Tape and Reel
  • Standard Package: 1000
  • Application: Board-to-Board
