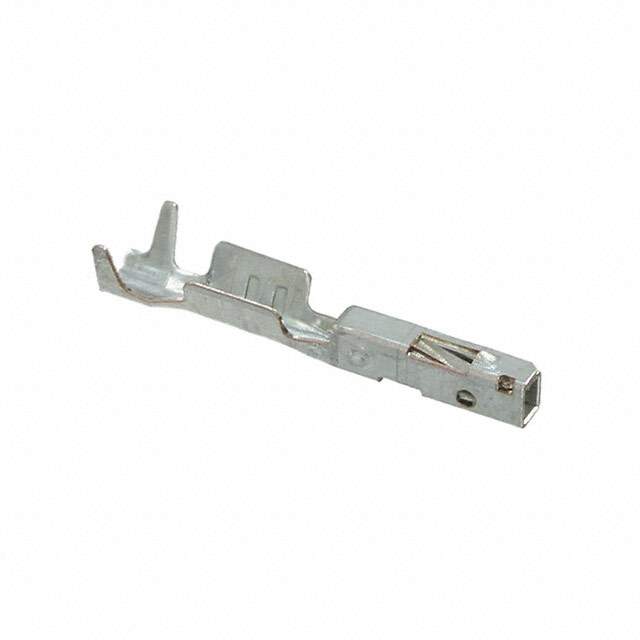

Same model may have multiple batches, images only for reference.

5600230448

Name: 5600230448
Brand: Molex, LLC
SKU: 907479
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5600230448
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN SOCKET 22AWG CRIMP TIN / Socket Contact Tin 22 AWG Crimp Stamped
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr	Molex, LLC
Series	CTX50, 560023
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Type	Stamped
Pin or Socket	Socket
Contact Termination	Crimp
Wire Gauge	22 AWG
Contact Finish	Tin
Contact Finish Thickness	19.7µin (0.50µm)
Base Product Number	560023
Standard Package	16,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	907479-5600230448
Ultra Librarian 3D Model	Ultra Librarian 5600230448 CAD Model

Alternative Products

Description

The CTX50, 560023 series is a stamped rectangular connector contact designed for various electronic applications.

Series: CTX50, 560023
Contact Finish: Tin
Contact Finish Thickness: 19.7µin (0.50µm)
Wire Gauge: 22 AWG
Contact Termination: Crimp
Package: Tape & Reel or Cut Tape
Quantity: 16,000 pieces
Manufacturer: Molex, LLC
