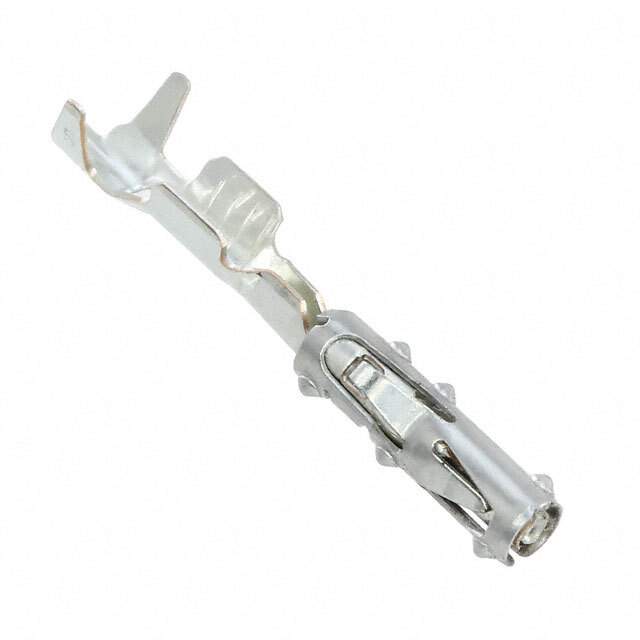

64322-1019 Real Image
Same model may have multiple batches, images only for reference.

64322-1019

Part No 64322-1019
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 0.635mm CMC CP Female Terminal, Tin Plated, for Square 0.6mm x 0.6mm Pins, Wire Size 0.35mm²
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, Crimp, Power, Rectangular, Signal, Socket
Contact Material Bronze
Contact Plating Tin
Country of Origin US
Current Rating 6 A
Gender Female
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Length 15.6 mm
Material Bronze
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Positions 20
Number of Rows 5
Orientation Straight
Packaging Cut Tape
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Shielding Unshielded
Termination Crimp
Voltage Rating (DC) 14 V
Wire/Cable Gauge 24 AWG
Win Source Part Number 1229093-64322-1019
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 64322-1019 CAD Model

Description

The Molex 1229093-64322-1019 is a 20-position female socket connector that is crimped for power and rectangular signal applications.

  • Positions: 20
  • Configuration: 5-Row
  • Pitch: 3mm
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Current Rating: 6A
  • Voltage Rating: 14V DC
  • Length: 15.6mm
  • Shielded: Unshielded
  • Orientation: Straight
  • Mounting: Cable
  • Housing Material: Thermoplastic
  • Housing Color: Black
  • RoHS Compliant: Yes
  • Halogen Content: Low Halogen
