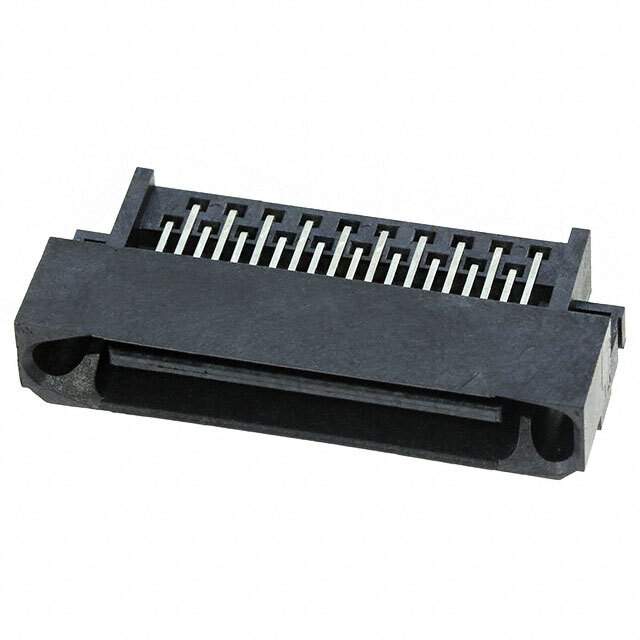

71661-2540 Real Image
Same model may have multiple batches, images only for reference.

71661-2540

Part No 71661-2540
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 1.27mm Pitch EBBI 50D Plug, Right-Angle, Blind Mate, 40 Circuits, 2.79mm PC Tail Length
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Plug
Contact Material Brass
Contact Plating Gold
Country of Origin US
Current Rating 1 A
Depth 17.45 mm
Housing Material Thermoplastic
Length 36.8 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 40
Number of Contacts 40
Number of Ports 1
Number of Positions 40
Number of Rows 2
Number of Terminals 40
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
RoHS Compliant
Termination Solder
Win Source Part Number 1018438-71661-2540
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 71661-2540 CAD Model

Description

This is a circular connector housing that is designed to be used in electronic devices. It is made by Molex, LLC, a leading manufacturer of electronic components.

  • Positions: 40
  • Pitch: 2.54 mm
  • Connector Type: Plug
  • Number of Rows: 2
  • Termination: Soldering
  • Contact Material: Brass
  • Contact Plating: Gold
  • Housing Material: Thermoplastic
