Part No 0764605026
Manufacturer Molex, LLC
Catalog Backplane Connectors

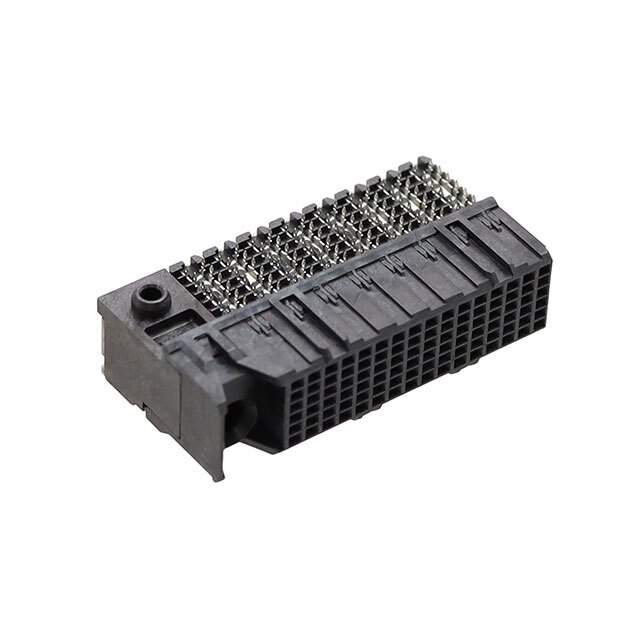

Description CONN RCPT IMPACT 96POS EDGE MNT / 96 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black Impact, Guide Right
Datasheet
0764605026 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Molex
Series Impact 76460
Package Tray
Connector Type Receptacle, Female Sockets
Connector Style Impact, Guide Right
Number of Positions 96
Number of Positions Loaded All
Number of Rows 6
Number of Columns 16
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 32 Differential Pairs
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 30V
Base Product Number 076460
Standard Package 168
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340231-0764605026
Ultra Librarian 3D Model Ultra Librarian 0764605026 CAD Model

Description

The 0764605026 is a specialized backplane connector from Molex.

  • Series: Impact 76460
  • Connector Type: Receptacle, Female Sockets
  • Packaging: Tray
  • Standard Package: 168
  • Connector Style: Impact, Guide Right
  • Voltage Rating: 30V
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C to 85°C
