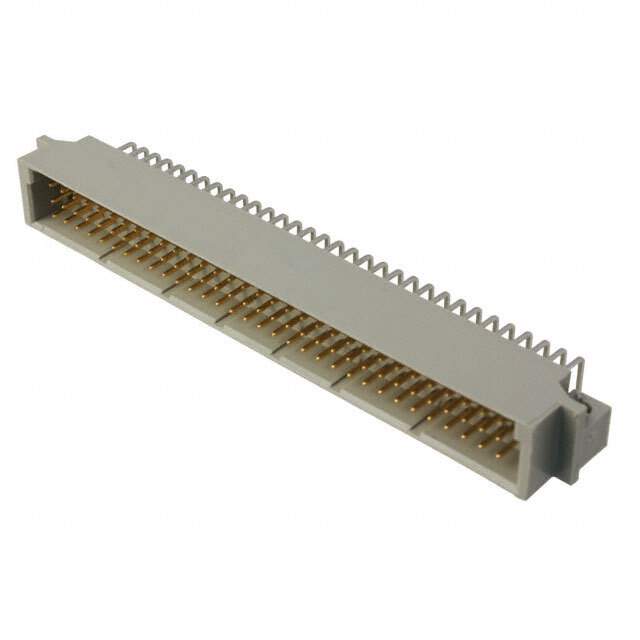

Part No 85003-0567
Manufacturer Molex, LLC
Catalog DIN 41612 Connectors
Description Conn Shrouded Header (4 Sides) HDR 105 POS 2.54mm Solder RA Side Entry Thru-Hole Package
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Brass
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin MY
Current Rating 1 A
Data Rate 622 Mbps
Gender Male
Lead Pitch 2.54 mm
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 96
Number of Columns 16
Number of Contacts 96
Number of Positions 96
Number of Rows 3
Orientation Right Angle
Pitch 2.54 mm
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating (AC) 250 V
Win Source Part Number 986970-85003-0567
Categories DIN 41612 Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 85003-0567 CAD Model

Description

The Molex 986970-85003-0567 is a right-angle male DIN 41612 connector with 96 positions.

  • Pitch: 2.54 mm
  • Rows: Three
  • Termination: Soldered
  • Current Rating: 1 A
  • Contact Material: Brass
  • Contact Plating: Gold
  • Voltage Rating: 250 V AC
  • Data Rate: 622 Mbps
  • Contact Resistance: 20 mΩ
  • RoHS Compliant: Yes
  • Lead Free: Yes
  • Minimum Operating Temperature: -55 °C
  • Maximum Operating Temperature: 125 °C
  • Application: DIN 41612 connectors
