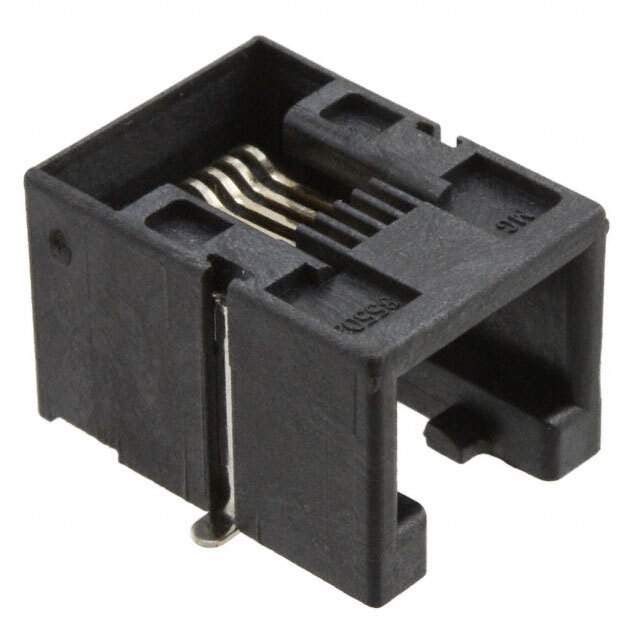

85502-5007 Real Image
Same model may have multiple batches, images only for reference.

85502-5007

Part No 85502-5007
Manufacturer Molex, LLC
Catalog Modular Connectors
Description Modular Jack, Right-Angle, Surface Mount, 6/6, Low Profile, Tape & Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Plating Gold
Color Black
Contact Material Brass, Copper
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin IE
Current Rating 1.5 A
Depth 18.1 mm
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Housing Color Black
Housing Material Thermoplastic
Insulation Resistance 500 MΩ
Length 16.16 mm
Material Polyamide
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 125 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Contacts 6
Number of Pins 6
Number of Ports 1
Number of Positions 6
Number of Positions Loaded 6
Orientation Right Angle
Packaging Cut Tape
Pitch 1.27 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination SMD/SMT
Voltage Rating 125 V
Voltage Rating (AC) 125 V
Width 11.5 mm
Win Source Part Number 1030257-85502-5007
Categories Modular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 85502-5007 CAD Model

Description

The 85502-5007 is a modular connector manufactured by Molex, LLC.

  • Packaging: Cut Tape
  • Win Source Part Number: 1030257-85502-5007
  • Positions: 6
  • Pitch: 1.27 mm
  • Color: Black
  • Positions Loaded: 6
  • Termination: SMD/SMT
  • Contact Material: Brass, Copper
  • Voltage Rating: 125 V
  • Current Rating: 1.5 A
  • Contacts: 6
  • Gender: Female
  • Length: 16.16 mm
  • Shielding: Unshielded
  • Housing Material: Thermoplastic
  • Orientation: Right Angle
  • Contact Plating: Gold
  • Housing Color: Black
  • Ports: 1
  • Body Plating: Gold
  • Contact Resistance: 20 mΩ
  • Material: Polyamide
  • Pins: 6
  • Plating: Tin
  • Width: 11.5 mm
  • Insulation Resistance: 500 MΩ
  • RoHS Compliance: Yes
